DMS Seals hydraulic piston seals sizes for sale
1. The random inspection will be carried out on DMS Seals production. Its parameters and specifications will be strictly scrutinized based on the sample or part approved sheet, so as to make sure it meets the quality requirements in the battery industry.
2. DMS Seals meets the safety management regulations and standards for electric devices. It is manufactured in line with the International Electrotechnical Commission (IEC) safety requirements.
3. The quality of DMS Seals hydraulic piston seals sizes is thoroughly tested by our QC department to meet the regulations and requirement of China Textile Industry Federation.
4. The parts and the chemical ingredients for purification of DMS Seals are all sourced from suppliers who have qualification and certifications in supplying quality water treating materials.
5. With the careful inspect from our dedicated and skilled crew of quality controllers at every step of production, the performance of this product remains exceptional with zero manufacturing defects.
6. The operational efficiency and quality are enhanced by our responsible quality team.
7. The stability and reliability of this product is largely ensured.
8. A dedicated QC department is established to optimize the quality control system and inspection method.
9. The product helps make life or work easier in some respects. It means that people don't have to take too many efforts to finish their work or enjoy a high level of living standard.
10. The money people save from using this energy-efficient product directly transforms into fewer GHG emissions, which is good for the environment.
11. The product is best for cleaning pool corners, gutters, and other inaccessible areas. It is useful for cleaning large areas quickly.
12. The product saves space and creates an elegantly understated look. The product has a compact design, offering more space to move around in the bathroom.
13. This product can carry different weights of the human body, and it can naturally adapt to any sleeping posture with the best support.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Standard materials

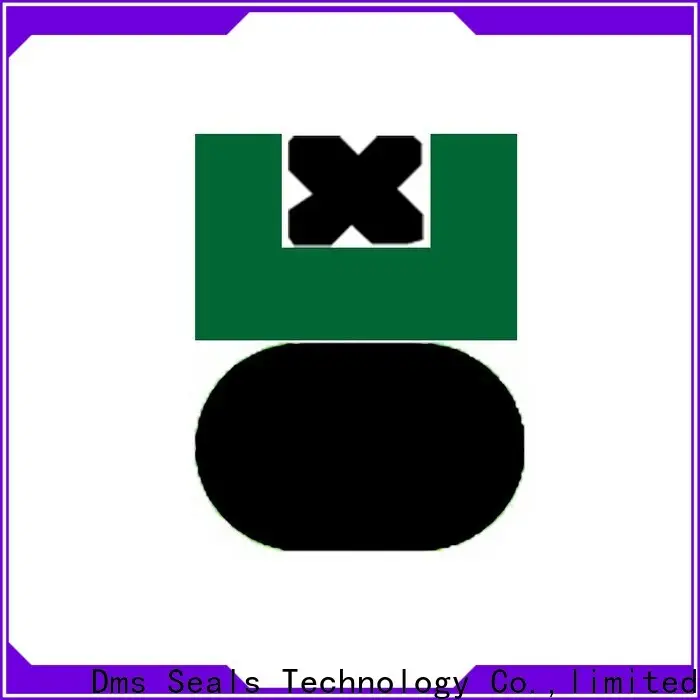

Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. For years, Dms Seals Technology Co.,limited has been recognized as a reliable manufacturer of . We are well known for providing innovative products. Dms Seals Technology Co.,limited, always acts flexibly to the market changes, is taking the lead in the industry of hydraulic piston seals sizes . Dms Seals Technology Co.,limited is a rapidly growing, mainly specializing in R&D, design, production, and sales of . We are a highly reputable company in China. Among most of the other suppliers that produce , Dms Seals Technology Co.,limited can be regarded as a leader in the market owing to its certain market share. For so many years, Dms Seals Technology Co.,limited is regarded as a reliable and trustworthy manufacturer for our clients and suppliers.
2. We have a team of designers with years of manufacturing experience. Their attention to details and commitment to perfection are evident in every product we produce. Dms Seals Technology Co.,limited has advanced automatic machines and inspected equipment for hydraulic u seal production. In Dms Seals Technology Co.,limited, the production equipment is advanced and the testing methods are complete.
3. We have a strong commitment to sustainable development. By utilizing the latest production technologies, we attempt to reduce emissions and increasing recycling. We invest in greener manufacturing practices. This will help us realize cost savings while also having a positive impact on the environment. For example, we have brought in highly efficient water-saving manufacturing facilities to reduce the waste of water resources. We emphasize environmental responsibility of our factory. We offer products designed to replace the environmentally destructive ones that elevate the carbon footprint.
DMS Seals hydraulic piston seals sizes for sale
hydraulic piston seals sizes
