DMS Seals hydraulic rod seals online for sale for pressure work and sliding high speed occasions1

Company Advantages
1. DMS Seals has to go through parts cleaning, drying, welding, and polishing. All these processes are scrutinized by specific technicians who have specialized knowledge.
2. DMS Seals is exclusively developed by utilizing proprietary electromagnetic handwriting input technology. The R&D team carries out this technology based on the needs in the market.
3. The designing of DMS Seals hydraulic rod seals online is the heating element. The heating element is finely developed by the professional technicians who aim to make it dehydrate the food by adopting heat source and air flow principle.
4. DMS Seals is developed with excellent pressure sensitivity by our researchers. The product, with ultra sensitivities, is designed to support different writing and drawing styles.
5. DMS Seals is carefully manufactured. It adopts the latest Computer Numerical Control (CNC) system for accuracy and PC-based controllers for flexibility.
6. Reliable quality and durability are our competitive advantages.
7. The product meets the most stringent quality requirements and can be used for quite a long time.
8. The product has withstood tough performance test and function optimally even in extreme conditions. And it has a long service life and is flexible enough for use in different conditions and assignments.
9. This product exceeds industry standards for performance, durability and availability.
10. The product brings about revenues with great performance.
11. The possible flaws in production and on-time delivery of product quality and quantity are ensured in Dms Seals Technology Co.,limited.
12. After investigating the consumer groups and consumer demand, Dms Seals Technology Co.,limited targets consumption at medium and high levels.

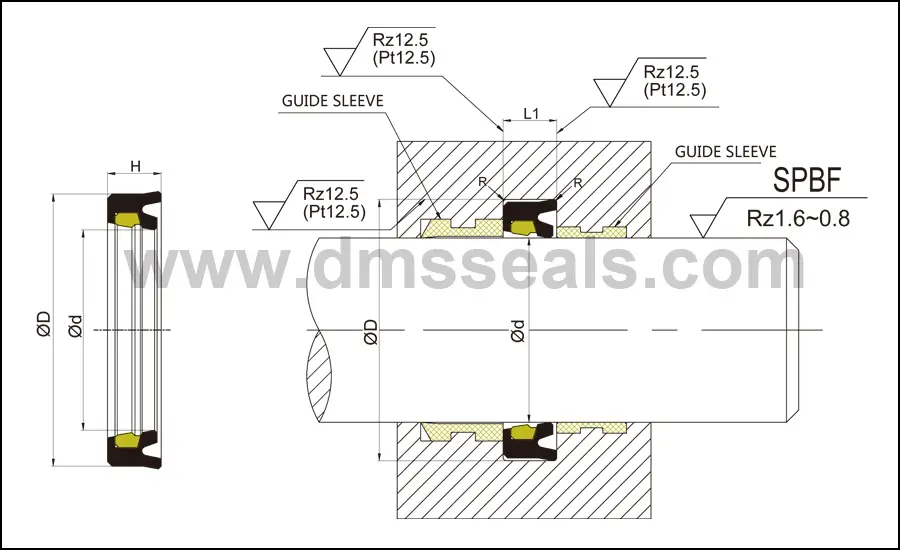

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. For years, Dms Seals Technology Co.,limited has been recognized as a reliable manufacturer of . We are well known for providing innovative products. After years of development, Dms Seals Technology Co.,limited has become a competent manufacturer engaging in the design and production of . Dms Seals Technology Co.,limited, a manufacturer that enjoys designing products with clients, is well known for its credibility and strong R&D competence in . Dms Seals Technology Co.,limited is an influential manufacturer and supplier in global market. Dms Seals Technology Co.,limited is a company that is regarded as highly reliable among customers for our high-quality .
2. In order to become a more capable company, DMS Seals has always introduced high-end technology. The hydraulic rod seals online is a leader in this similar market. Our wholesale oil seals production technology is a leader in the world and has a bright future. Our Customer Service always renders a sincere and fair attitude towards our global customers.
3. Upholding proves to be the source of new impetus for the sustained and healthy development of DMS Seals. Inquiry! is Dms Seals Technology Co.,limited's business philosophy. Inquiry! DMS Seals is going to make every customer satisfied with our great hydraulic seal kit manufacturers . Inquiry!

DMS Seals hydraulic rod seals online for sale for pressure work and sliding high speed occasions

hydraulic rod seals online

Type:
