DMS Seals hydraulic rod seals online vendor to high and low speed

Company Advantages
1. The raw materials of DMS Seals are carefully selected. All its components or parts are made of sustainable and environmental-friendly materials which pose no risk to the environment. Seal we produced has applications in a wide range of fields
2. Under strict quality tests, hydraulic rod seals online is of high quality when arriving to customers. DMS Seals implements and optimizes its quality control systems
3. The product has a smooth and flat surface. The singeing technique which quickly passes yarn or fabric through a flame or rubs it over a hot metal surface to remove the surface hairs. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. The product is high-temperature resistant. It is made of heat-resisting material which features a high melting and decomposition point. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

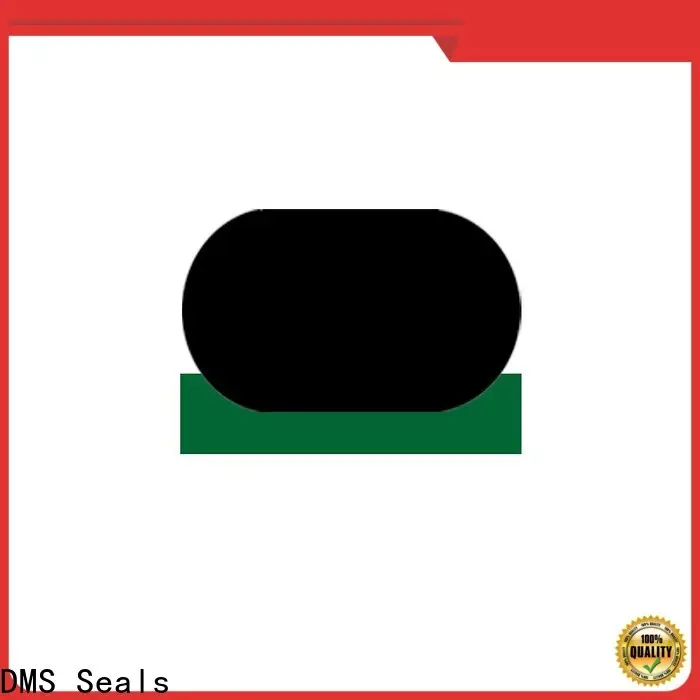

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited has established many hydraulic rod seals online production bases and marketing networks in the world.
2. The DMS Seals brand will further develop high-end products for customers. Inquire now!
