DMS Seals piston seals price for pneumatic equipment
- With the highest sincerity and the best attitude, Dms Seals strives to provide consumers with satisfactory services in line with their real needs.
1. DMS Seals has a user-centric and product-centric design.
2. The technology adopted in DMS Seals production is industry-leading.
3. The designers working for Dms Seals Technology Co.,limited is globally famous.
4. The quality of this product has been highly evaluated by authoritative testing organizations based on a strict performance test and quality test.
5. Regular performance checks have been implemented to ensure the high performance and reliable quality of the product.
6. Strict and perfect quality control system, to ensure that products with the best quality and performance production.
7. The product has been certified to a number of recognized standards, such as ISO quality standards.
8. The product has many technical advantages such as long service life.
9. To ensure the high reliability of piston seals provided, DMS Seals well selects the high-end materials to produce.
10. DMS Seals has successfully produced piston seals in bulk production ensuring the competitive price.
11. With advanced technology and professional staff, it is absolute that piston seals quality is assured.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |

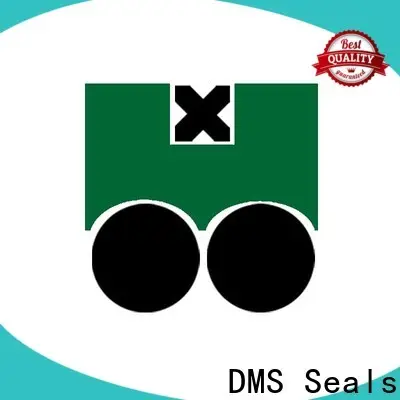

Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. At present, the main business of Dms Seals Technology Co.,limited includes the R&D, production and sales of piston seals . Dms Seals Technology Co.,limited is the largest of China's domestic assembly facilities in seal pneumatics inc field. Dms Seals Technology Co.,limited is one of the key enterprises of national external seal industry, whose leading product is . Dms Seals Technology Co.,limited's major manufacturing center is in China. Dms Seals Technology Co.,limited is a high-tech enterprise specializing in research, design, production, sales and after-sales service of hydraulic cylinder shaft seals .
2. The cutting-edge technology adopted in hydraulic and pneumatic seals helps us win more and more customers. Our technology is always one step ahead than other companies for wholesale oil seals . Almost all technician talent for the industry of piston cup seal suppliers work in our Dms Seals Technology Co.,limited. All our technician in Dms Seals Technology Co.,limited are well trained to help customers solve problems for molded seals . Always aim high in quality of hydraulic piston seals suppliers .
3. Dms Seals Technology Co.,limited is committed to creating a o-ring seal with for its customers. Get an offer! Dms Seals Technology Co.,limited takes science as its forerunner and strive for perfection. Get an offer! Dms Seals Technology Co.,limited regards creating world-known brand as our ultimate goal. Get an offer! The business policy Dms Seals Technology Co.,limited launched with is . Get an offer!
