DMS Seals Top hydraulic rod seals online factory to high and low speed

Company Advantages
1. DMS Seals is innovatively developed by the R&D team. It is developed with a complete refrigeration system including the condenser, the compressor, the evaporator, and the expansion valve.
2. DMS Seals is constantly inspected. It is checked for issues in stitching, including conducting seam strength tests and checks for fraying, skipped stitches, open stitches, crooked stitches, and puckered seams.
3. The manufacture of DMS Seals hydraulic rod seals online involves several stages: 3D design, cutting, forming, surface treatments, biocompatibility testing, and assembly.
4. The product can be easily adjustable. It is equipped with an adjustable strap such as laces or Velcro which allows for adjustment.
5. The product features enough smoothness. The RTM process technology provides uniform smoothness on both sides and its surface is coated with the gel.
6. The product features self-discharge rates. The chemistries used have been refined to help reduce contacts between each other and minimize energy losses.
7. Dms Seals Technology Co.,limited's working team features high quality, responsible and innovative.
8. In Dms Seals Technology Co.,limited, orders shall be shipped as promised.
9. hydraulic rod seals online is produced from design to production which are under exquisite management to ensure the quality.
10. With excellent quality and good reputation, the production scale of Dms Seals Technology Co.,limited is expanding.
11. Dms Seals Technology Co.,limited has a strong R&D team, top class management force together with a qualified control system.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

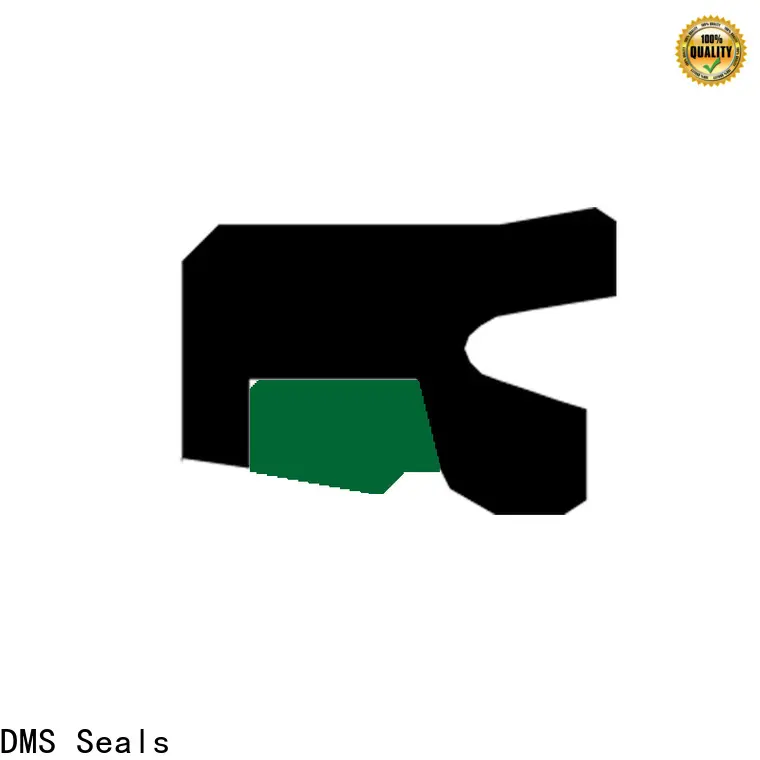

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Dms Seals Technology Co.,limited stands in the forefront of their hydraulic rod seals online market. Without the efforts of every employee, DMS Seals as a hydraulic seals pdf brand cannot be so successful. It is the quality rod end seals and excellent service that makes Dms Seals Technology Co.,limited the leader in the industry. Dms Seals Technology Co.,limited is a leading producer providing hydraulic seal kit manufacturers for many customers from various countries.
2. The upgraded technology can guarantee that the long service life of metric hydraulic cylinder seals . Dms Seals Technology Co.,limited's R&D team is composed by experienced engineers. Dms Seals Technology Co.,limited has imported machines and exquisite techniques.
3. The vision of Dms Seals Technology Co.,limited is to develop into a worldwide supplier of hydraulic and pneumatic seals . Inquire now! Dms Seals Technology Co.,limited aims to be a producer that places a high value on the services. Inquire now! Dms Seals Technology Co.,limited is committed to creating the best brand in the hydraulic rod seal installer industry. Inquire now! We do our best to win the international hydraulic rod seals marketplace.
