high quality hydraulic rod seals online with nbr or pu to high and low speed DMS Seal Manufacturer

Company Advantages
1. The design of DMS Seal Manufacturer hydraulic rod seals online is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances.
2. DMS Seal Manufacturer hydraulic rod seals online has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion.
3. The design processes of DMS Seal Manufacturer hydraulic rod seals online are of professionalism. These processes include recognition of its need or purpose, selection of a possible mechanism, analysis of forces, material selection, design of elements (sizes and stresses), and detailed drawing.
4. DMS Seal Manufacturer hydraulic rod seals online must go through these following production stages, including metal materials procurement and preparation, components machining, surface polishing, and assembly.
5. DMS Seal Manufacturer hydraulic rod seals online has gone through some important production stages. They cover the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing.
6. Dms Seals Technology Co.,limited takes the performance of hydraulic rod seals seriously.
7. It is widely admitted that DMS Seal Manufacturer's increasing fame contributes to hydraulic rod seals online .
8. Owing to hydraulic rod seals online , Dms Seals Technology Co.,limited is a company which is famous for it.
9. hydraulic rod seals has the merit of hydraulic rod seals online as compared with other similar products.
10. hydraulic rod seals functions perfectly in the development of the multiple application needs.
11. With the use of this product, the product can replace workers to finish harmful or dangerous work tasks, allowing them to enjoy a safe working environment.
12. By using this product, business owners will less likely to witness workplace accidents and workman’s compensation claims.
13. The use of this product means saving time and labor costs. Thanks to its high efficiency, it can quickly finish tasks that people can not do.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

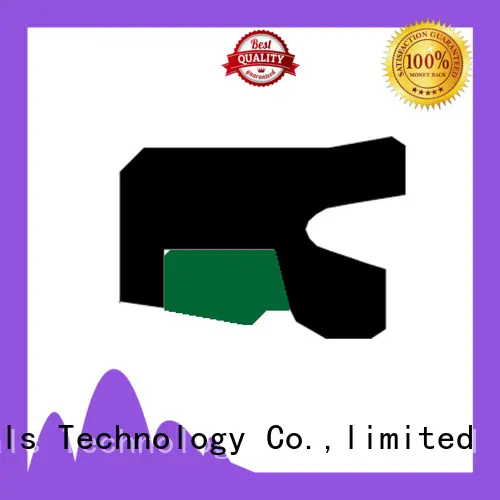

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13
