Hot piston seals piston DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+100℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The piston seals facility can pneumatic piston seals and you can specify hydraulic piston seals sizes.The high pressure seals have strong wear resistance to hard conditions
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. We can support OEM and ODM
3. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management. hydraulic piston seals,hydraulic piston seals enjoys a wide application such as hydraulic cylinder piston seals.
4. Our o-ring seal is alluring pieces that can solve your problem of less space. Quality control of the seals is the basis for DMS Seals
5. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians, DMS Seal Manufacturer Has Helped Ourselves As One Of The Leading Brand In This Field Of piston seals, hydraulic piston seals suppliers.

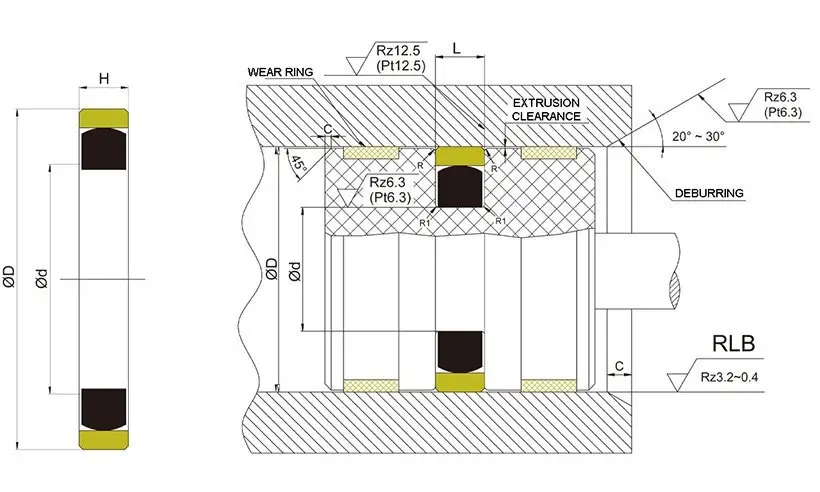

Installation Recommendation

undefined

Installation Sizes

Bore Diameter	Groove Diameter	Groove Width	Radius	Radial Clearance S max.
D H8	d h8	L1+0.2	R1	16MPa	26MPa	32MPa	40MPa
55.0-149.9	D-10.0	10.0	0.4	0.60	0.50	0.40	0.40
150.0-244.9	D-12.5	12.5	0.4	0.75	0.65	0.55	0.50
245.0-500.0	D-15.0	15.0	0.8	0.75	0.65	0.55	0.50
500.1-760.0	D-17.5	17.5	1.2	0.75	0.65	0.55	0.50
760.1-999.9	D-20.0	20.0	1.2	0.80	0.70	0.60	0.55
≧1000	D-20.0	20.5	1.2	0.80	0.70	0.60	0.55

Application and properties

Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

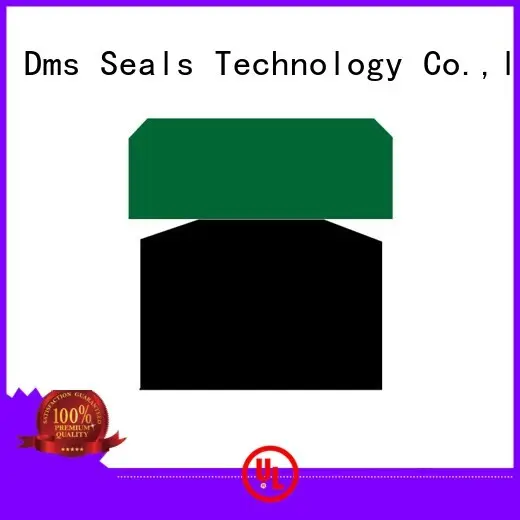

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+100℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.
D H8	d h8	L+0.2	Order No.
55 60 70	40 45 55	10 10 10	GSF-W554010 GSF-W604510 GSF-W705510
80 90 100	60 70 80	10 10 10	GSF-W806010 GSF-W907010 GSF-W1008010
110 115 120	90 95 100	10 10 10	GSF-W1109010 GSF-W1159510 GSF-W12010010
130 140 150	110 120 125	10 10 12.5	GSF-W13011010 GSF-W14012010 GSF-W15012512.5
160 165 170	135 140 145	12.5 12.5 12.5	GSF-W16013512.5 GSF-W16514012.5 GSF-W17014512.5
180 185 190	155 160 165	12.5 12.5 12.5	GSF-W18015512.5 GSF-W18516012.5 GSF-W19016512.5
200 205 210	175 180 185	12.5 12.5 12.5	GSF-W20017512.5 GSF-W20518012.5 GSF-W21018512.5
215 220 225	190 195 200	12.5 12.5 12.5	GSF-W21519012.5 GSF-W22019512.5 GSF-W22520012.5
230 240 245	205 215 215	12.5 12.5 15	GSF-W23020512.5 GSF-W24021512.5 GSF-W24521515

Installation Dimensions

Company Features
1. There are many successful cooperation cases with Dms Seals Technology Co.,limited for our piston seals.
2. hydraulic piston seals is developed using latest technology support for pneumatic piston seals.
3. Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Inquire online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
