Hot pneumatic piston seals piston DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. DMS Seals takes the lead in grasping the development trend of the industry. As one of the unique feature, pneumatic piston seals successfully makes hydraulic piston seals sizes more popular among customers. DMS Seals takes the lead in grasping the development trend of the industry
2. Dms Seals Technology Co.,limited, well-known for its superior quality, will provide first-class service. We can support OEM and ODM
3. piston seals through such process results in great performance. Seal we produced has applications in a wide range of fields

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

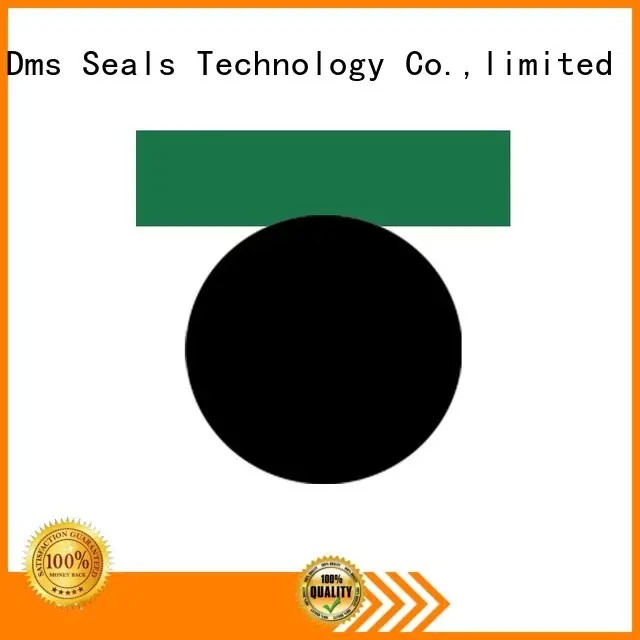

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. Fully specialized in the R&D and production of piston seals, Dms Seals Technology Co.,limited is globally recognized.
2. There is strict testing for quality of hydraulic piston seals to make satisfying products for customers.
3. Our o-ring seal have been well sold to all over the world known as its pneumatic piston seals. Please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
