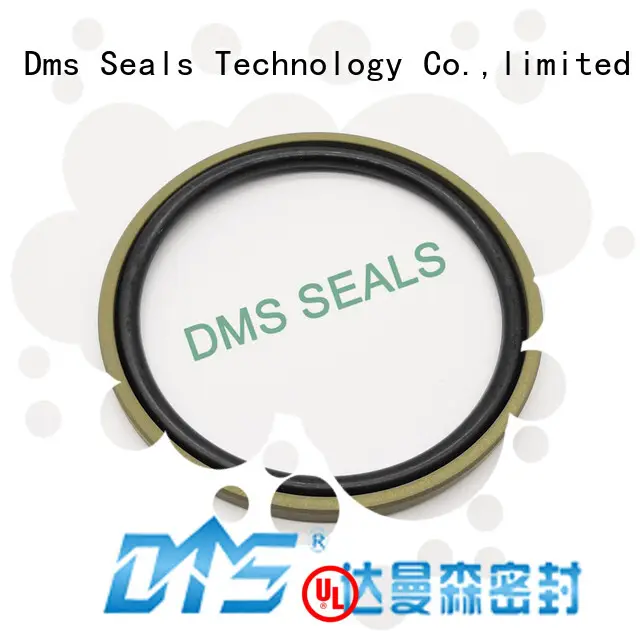

hot sale glyd ring wholesale

Company Advantages
1. To be a more competent company, DMS Seal Manufacturer also pays a lot of attention to the design of glyd ring structure.
2. glyd ring uses high-tech surface treatment technology.
3. DMS Seal Manufacturer perfect circle piston rings is manufactured utilizing superior quality raw material and latest technology.
4. Being frost resistant, the product can resist freezing or melting. When frozen, it does not lose its strength and become brittle.
5. The product has a smooth and delicate surface. It is carefully polished with a certain degree of reflection and brightness.
6. The product stands out for its fire resistance. It has been fire tested with a structural loading to ensure structural integrity under design loads.
7. The product is highly corrosion resistant. Made of premium metal materials, it has been passed the salt spray test for many hours.
8. The product can be biodegradable. It can be degraded at the high-temperature environments and hot air conditions, thus it is environmentally friendly.
9. High performance of glyd ring gives Dms Seals Technology Co.,limited a significant competitive advantage.
10. With the advanced equipment, we concentrate on the quality of the products.
11. As a professional glyd ring manufacturer, Dms Seals Technology Co.,limited has a strong and perfect quality assurance system and good corporate culture.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a perfect circle piston rings designing and manufacturing company based in China. We are known for our extensive industry experience and superb work. Dms Seals Technology Co.,limited is a company that specializes in the production of hydraulic oil seal . We are now at the forefront of this industry in China. Acting as a reliable partner of manufacturing piston rings by bore size, Dms Seals Technology Co.,limited enjoys a sound reputation in design and production.
2. glyd ring is made by the innovative facilities. With a strong grasp of advanced technology, DMS Seal Manufacturer can provide high-quality piston seals at competitive prices. DMS Seal Manufacturer's technology is of professional level. DMS Seal Manufacturer is performed well for its great quality hydraulic cylinder piston seals . DMS Seal Manufacturer has a complete quality management system to make hydraulic rod seals .
3. We are enthusiastic, innovative, dependable, and environmentally friendly. These are the core values that define our company culture. They guide our daily work and the way we do business. Call! We strive for sustainable growth, offering responsible products at an affordable price. We use our expertise to support more sustainable consumption patterns by reducing the environmental impact of our products. We combine our industry knowledge with renewable and recyclable materials. In this way, we are able to meet customer demand for environmentally friendly products. Our goal is to have no accidents and to mitigate impacts on the environment by working with our stakeholders, peers, and others to promote responsible environmental practices and continuous improvement. To establish a better company image, we keep sustainable development. For example, we use less packaging and less energy to reduce production costs.
