Company Advantages1. The newly launched products by Dms Seals Technology Co.,limited were all completed by the internationally renowned design company. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. All relative certificates to guarantee quality will be provided by Dms Seals Technology Co.,limited. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. Many customers are greatly impressed by its optimal performance and superior quality. To reduce costs with high-efficiency work is the DMS's purpose
4. rod seals is waterproof and easily cleaned. We can support OEM and ODM
5. High-end talents and advanced technology have enabled DMS
o-ring seal quality to reach the industry's leading level.
hydraulic rod seals,hydraulic rod seals is packed with features and offers great performance.

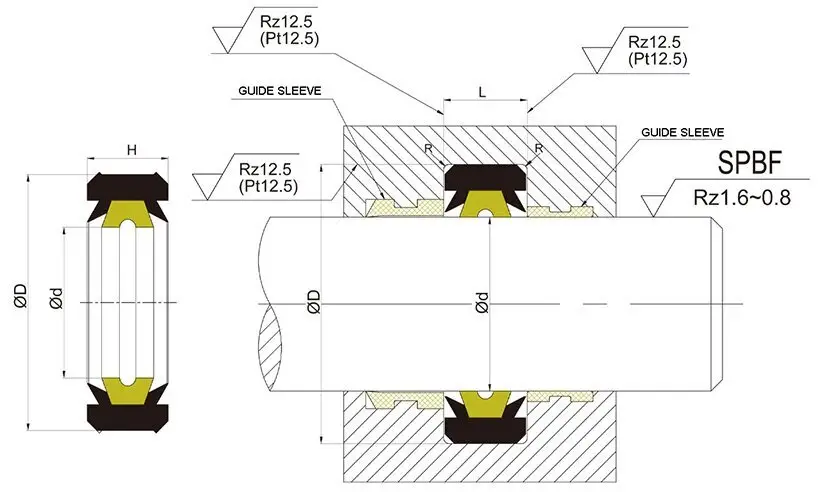

Installation Recommendation
![undefined undefined]()
Installation Sizes
Rod Diameter d e8 | Groove Diameter D H9 | Groove Width L D10 | H |
20-56 | d+10 | 16 | 15 |
57-140 | d+13 | 16 | 15 |
>140 | d+15 | 16 | 15 |
Application and properties
Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.
Sealing ring: filled PTFE
O-Ring: NBR / PU
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-25MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
Installation Dimensions
d e8 | D1 H9 | H | L D10 | e | Order No. |
50 55 56 | 60 65 66 | 15 15 15 | 16 16 16 | 6 6 6 | MDI50*60*15 MDI55*65*15 MDI56*66*15 |
60 63 65 | 73 76 78 | 15 15 15 | 16 16 16 | 7 7 7 | MDI60*73*15 MDI63*76*15 MDI65*78*15 |
70 72 75 | 83 85 88 | 15 15 15 | 16 16 16 | 7 7 7 | MDI70*83*15 MDI72*85*15 MDI75*88*15 |
80 85 90 | 93 98 103 | 15 15 15 | 16 16 16 | 7 7 7 | MDI80*93*15 MDI85*98*15 MDI90*103*15 |
95 100 105 | 108 113 118 | 15 15 15 | 16 16 16 | 7 7 10 | MDI95*108*15 MDI100*113*15 MDI105*118*15 |
110 110 115 | 120 123 128 | 15 15 15 | 16 16 16 | 10 10 10 | MDI110*120*15 MDI110*123*15 MDI115*128*15 |
120 125 130 | 133 138 143 | 15 15 15 | 16 16 16 | 10 10 10 | MDI120*133*15 MDI125*138*15 MDI130*143*15 |
140 150 150 | 153 162 165 | 15 15 15 | 16 16 16 | 10 10 10 | MDI140*153*15 MDI150*162*15 MDI150*165*15 |
160 165 170 | 175 180 185 | 15 15 15 | 16 16 16 | 10 10 10 | MDI160*175*15 MDI165*180*15 MDI170*185*15 |
180 185 190 | 195 200 205 | 15 15 15 | 16 16 16 | 10 10 10 | MDI180*195*15 MDI185*200*15 MDI190*205*15 |
Company Features1. Please Contact Us! DMS Seal Manufacturer's rod seals, hydraulic rod seals, piston rod seal Have The Features Of High Efficient And Low Priced. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
2. The friendly cooperation with hydraulic rod seals online helps the growth of DMS Seal Manufacturer. Inquire!
