hydraulic nbrfkm DMS Seal Manufacturer Brand pneumatic piston seals factory

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. DMS Seal Manufacturer material for pneumatic piston seals is different from other companies' material and it's better.
2. DMS Seals' production equipment and test equipment are on the leading level in the industry. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. To reduce costs with high-efficiency work is the DMS's purpose. In order to conform to the fashion of piston seals,hydraulic piston seals sizes industry, our products are developed consistuted by the leading technology.
4. DMS Seals takes the lead in grasping the development trend of the industry. The quality of our hydraulic piston seals,hydraulic piston seals is so great that you can definitely rely on.

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

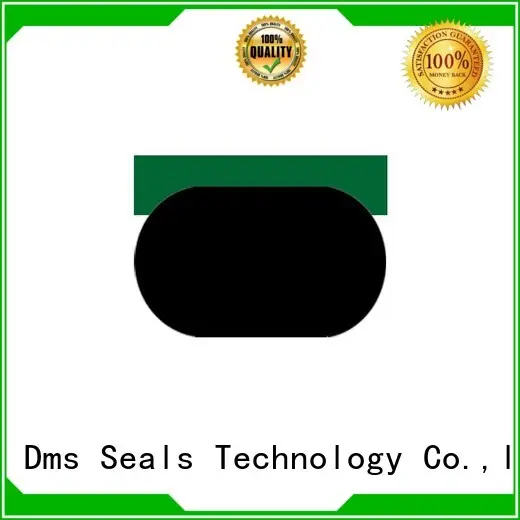

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions
