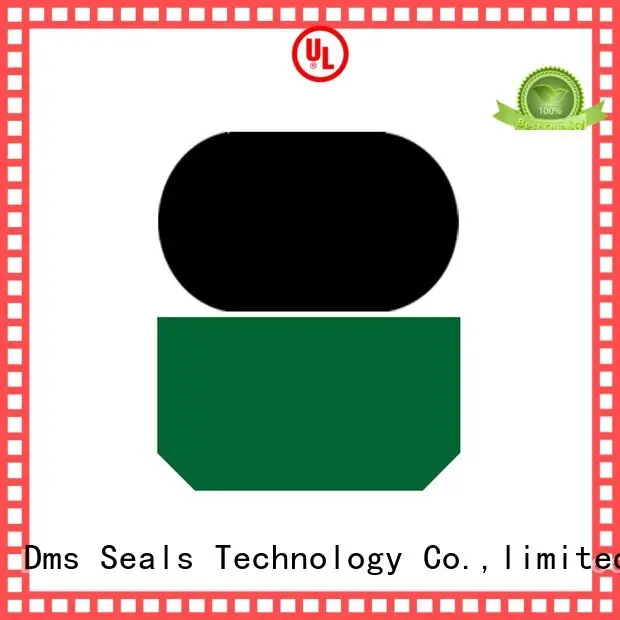

hydraulic ptfe rod rod seals DMS Seal Manufacturer 1

hydraulic ptfe rod rod seals DMS Seal Manufacturer 2

hydraulic ptfe rod rod seals DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. The high pressure seals have strong wear resistance to hard conditions. DMS Seal Manufacturer material for hydraulic rod seals is different from other companies' material and it's better.
2. DMS Seals' production equipment and test equipment are on the leading level in the industry. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. The design of piston rod seal makes rod seals easy to install. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
4. DMS Seals provides professional design and production of high-grade o-ring seals. hydraulic rod seals,hydraulic rod seals online excels due to its excellent properties of rod seal catalogue.
5. O Ring Manufacturers has its own distinctive characteristics of pneumatic rod seals. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

Installation Recommendation

undefined

Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	colspan="3"> Radial Clearance S max.	O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots. Meet the standard of GB/T 15242.3.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0－60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2	Order No.	O-Ring Dimensions
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSI48.92.2 GSI59.92.2 GSI610.92.2	5.61.8 6.71.8 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSI812.92.2 GSI815.33.2 GSI1014.92.2	9.51.8 10.772.62 11.8*1.8
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSI1017.33.2 GSI1216.92.2 GSI1219.33.2	12.372.62 14.01.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSI1418.92.2 GSI1421.33.2 GSI1519.92.2	15.61.78 17.122.62 17.17*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSI1522.33.2 GSI1620.92.2 GSI1623.33.2	17.122.62 17.171.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSI1822.92.2 GSI1825.33.2 GSI1929.74.2	20.351.78 20.292.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI2027.33.2 GSI2030.74.2 GSI2229.33.2	21.892.62 25.03.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI2232.74.2 GSI2431.33.2 GSI2532.33.2	26.573.53 26.642.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI2535.74.2 GSI2636.74.2 GSI2835.33.2	29.743.53 29.743.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI2838.74.2 GSI3037.33.2 GSI3040.74.2	32.923.53 32.992.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI3239.33.2 GSI3242.74.2 GSI3542.33.2	34.592.62 36.093.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI3545.74.2 GSI3643.33.2 GSI3646.74.2	37.693.53 39.342.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI3848.74.2 GSI3853.16.3 GSI4050.74.2	40.873.53 43.825.33 44.04*3.53
40 42 42	55.1 52.7 57.1	6.3 4.2 6.3	GSI4055.16.3 GSI4252.74.2 GSI4257.16.3	43.825.33 47.223.53 46.99*5.33
45 45 48	55.7 60.1 58.7	4.2 6.3 4.2	GSI4555.74.2 GSI4560.16.3 GSI4858.74.2	50.393.53 50.175.33 51.5*3.55
48 50 50	63.1 60.7 65.1	6.3 4.2 6.3	GSI4863.16.3 GSI5060.74.2 GSI5065.16.3	53.345.33 53.573.53 56.52*5.33
52 52 54	62.7 67.1 69.1	4.2 6.3 6.3	GSI5262.74.2 GSI5267.16.3 GSI5469.16.3	56.743.53 56.525.33 59.69*5.33
55 55 56	65.7 70.1 66.7	4.2 6.3 4.2	GSI5565.74.2 GSI5570.16.3 GSI5666.74.2	59.923.53 59.695.33 59.92*3.53
56 58 60	71.1 73.1 70.7	6.3 6.3 4.2	GSI5671.16.3 GSI5873.16.3 GSI6070.74.2	62.875.33 62.875.33 63.09*3.53
60 63 63	75.1 73.7 78.1	6.3 4.2 6.3	GSI6075.16.3 GSI6373.74.2 GSI6378.16.3	66.045.33 66.273.53 69.22*5.33
65 67 70	80.1 77.7 80.7	6.3 4.2 4.2	GSI6580.16.3 GSI6777.74.2 GSI7080.74.2	69.225.33 72.623.53 75.79*3.53
70 72 75	85.1 82.7 85.7	6.3 4.2 4.2	GSI7085.16.3 GSI7282.74.2 GSI7585.74.2	75.575.33 75.793.53 78.97*3.53
75 80 80	90.1 90.7 95.1	6.3 4.2 6.3	GSI7590.16.3 GSI8090.74.2 GSI8095.16.3	81.925.33 85.323.53 85.09*5.33
83 85 86	93.7 100.1 96.7	4.2 6.3 4.2	GSI8393.74.2 GSI85100.16.3 GSI8696.74.2	88.493.53 91.445.33 91.67*3.53
90 90 92	100.7 105.1 102.7	4.2 6.3 4.2	GSI90100.74.2 GSI90105.16.3 GSI92102.74.2	94.843.53 94.625.33 98.02*3.53
95 95 100	105.7 110.1 110.7	4.2 6.3 4.2	GSI95105.74.2 GSI95110.16.3 GSI100110.74.2	101.193.53 100.975.33 104.37*3.53
100 105 105	115.1 115.7 120.1	6.3 4.2 6.3	GSI100115.16.3 GSI105115.74.2 GSI105120.16.3	107.325.33 110.723.53 110.49*5.33

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is a Chinese manufacturer of high quality rod seals. - Equipped with a complete set of quality control technology, hydraulic rod seals can be guaranteed with good quality.
2. Improving quality supervision during the O Ring Manufacturers production is another process to ensure the quality.
3. Equipped with high precision components and manufactured with latest technology, DMS Seal Manufacturer o-ring seal are used for hydraulic rod seals. - DMS Seal Manufacturer's devotion is to offer the most professional customer service which ranks top in rod seals industry. Inquire now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
