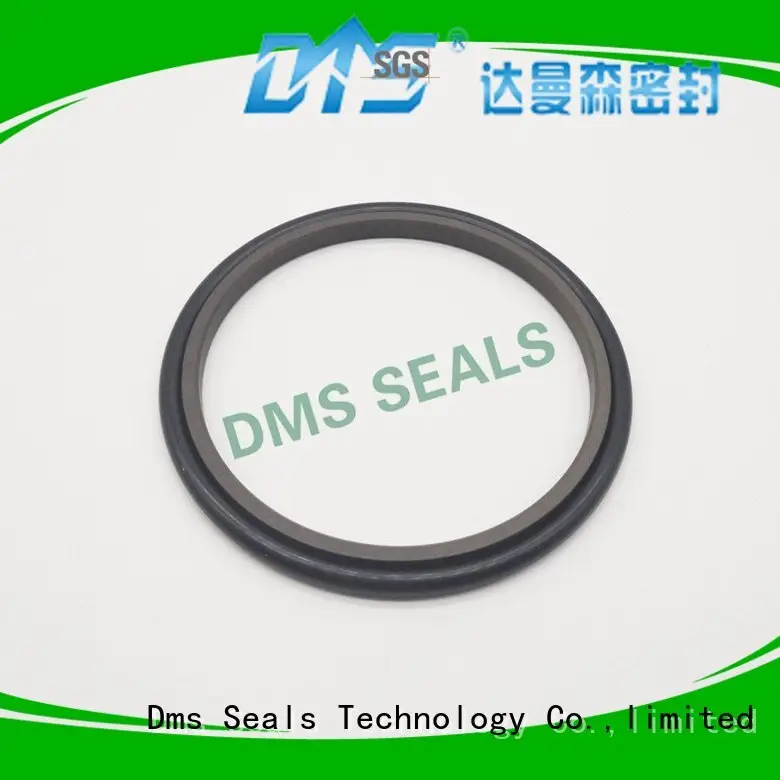

hydraulic rod seals rod ptfe DMS Seal Manufacturer company 1

hydraulic rod seals rod ptfe DMS Seal Manufacturer company 2

hydraulic rod seals rod ptfe DMS Seal Manufacturer company

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Product Details

's O-ring Seal is of excellent quality, which is reflected in the details.

Product Comparison

Compared with other products in the same category, O-ring Seal has more advantages, specifically in the following aspects.

Company Advantages
1. With its properties like hydraulic rod seals, rod seals occupy a magnificent place in the piston rod seal market. DMS Seals takes the lead in grasping the development trend of the industry
2. Fully automated processes also allow you to save on manpower and optimize the quality of your hydraulic rod seals online. Quality control of the seals is the basis for DMS Seals.
3. We have developed solutions of the sealing of special working condition, We Provides Different Series Of hydraulic rod seals, rod seal catalogue With Various Designs.
4. DMS Seal manufacturer provides good quality and competitive price hydraulic seals. active listening is essential for DMS Seal Manufacturer's effective communication with customers.
5. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. DMS Seal Manufacturer always manages to make sure customers are getting what they need.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N h9

D₁ H9

L₁+0.2

27.3

30.7

29.3

3.2

4.2

3.2

GSI20*27.3*3.2

GSI20*30.7*4.2

GSI22*29.3*3.2

21.89*2.62

25.0*3.53

25.07*2.62

32.7

31.3

32.3

4.2

3.2

GSI22*32.7*4.2

GSI24*31.3*3.2

GSI25*32.3*3.2

26.57*3.53

26.64*2.62

28.24*2.62

35.7

36.7

35.3

4.2

3.2

GSI25*35.7*4.2

GSI26*36.7*4.2

GSI28*35.3*3.2

29.74*3.53

29.82*2.62

38.7

37.3

40.7

4.2

3.2

4.2

GSI28*38.7*4.2

GSI30*37.3*3.2

GSI30*40.7*4.2

32.92*3.53

32.99*2.62

34.52*3.53

39.3

42.7

42.3

3.2

4.2

3.2

GSI32*39.3*3.2

GSI32*42.7*4.2

GSI35*42.3*3.2

34.59*2.62

36.09*3.53

37.77*2.62

45.7

43.3

46.7

4.2

3.2

4.2

GSI35*45.7*4.2

GSI36*43.3*3.2

GSI36*46.7*4.2

37.69*3.53

39.34*2.62

40.87*3.53

48.7

53.1

50.7

4.2

6.3

4.2

GSI38*48.7*4.2

GSI38*53.1*6.3

GSI40*50.7*4.2

40.87*3.53

43.82*5.33

44.04*3.53

Company Features
1. Dms Seals Technology Co.,limited has defeated many competitors in the production field of hydraulic rod seals.
2. DMS Seal Manufacturer insists in good quality and reliable products as well as quality control.
3. Clients’ options are fully respected in our company. Check it!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
