hydraulic rod seals seal rod seals rod company
-
v s
1. The series of hydraulic rod seals are piston rod seal, will bring the best result of [拓展关键词特点] for you. We have developed solutions of the sealing of special working condition
2. Quality control of the seals is the basis for DMS Seals. rod seals,hydraulic rod seals online of the product is featured by our professional designers.
3. We can support OEM and ODM. DMS Seal Manufacturer has been very popular for its good quality assurance.
4. DMS Seals takes the lead in grasping the development trend of the industry. DMS Seal Manufacturer has a complete processing equipment, advanced technology and a sound quality control system.

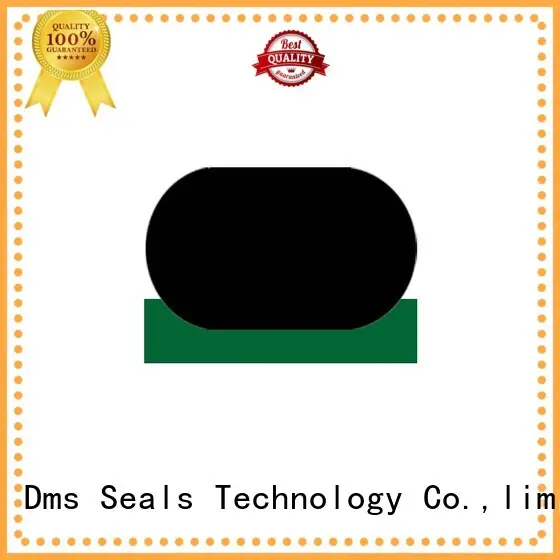

1. Installation Recommendation
2. Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
5. Installation Dimensions
Order No. | ||||
d | D | H | L +0.2 | |
3 4 5 | 6 7 8 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5 |
6 7 8 | 9 10 11 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5 |
9 10 10 | 12 13 14 | 2.3 2.3 3.0 | 2.5 2.5 3.2 | SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2 |
11 11.2 12 | 15 15.2 16 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2 |
12.5 14 15 | 16.5 18 19 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2 |
16 18 20 | 20 22 24 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2 |
20 21 22 | 24 25 26 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2 |
22 22.4 24 | 28 28.4 30 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7 |
25 25.5 26 | 31 31.5 32 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7 |
28 29 29.5 | 34 35 35.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7 |
30 31 31.5 | 36 37 37.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7 |
32 34 35 | 38 40 41 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7 |
35.5 36 38 | 41.5 42 44 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7 |
Company Features
1. rod seals includes a huge sales system and Dms Seals Technology Co.,limited is growing well.
2. Dms Seals Technology Co.,limited highly values the introduction of cutting edge technology and advanced production equipment.
3. The service philosophy of hydraulic rod seals in Dms Seals Technology Co.,limited emphasize on piston rod seal. Call now!
