Latest hydraulic rod seals online factory for sale

Company Advantages
1. DMS Seal Manufacturer hydraulic rod seals online will be checked to meet garment quality requirements. The fabrics, trims, sewing, and dimension, will be all inspected based on set garments specification.
2. The design of DMS Seal Manufacturer is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances.
3. DMS Seal Manufacturer hydraulic rod seals online has gone through a series of third-party tests. They cover load testing, impact testing, arm & leg strength testing, drop testing, and other relevant stability and user testing.
4. The manufacturing of DMS Seal Manufacturer hydraulic rod seals online includes a wide range of procedures. They are fabric sourcing, printing, sewing, woven tags, swing tags, quality control, and so forth.
5. DMS Seal Manufacturer has passed the necessary safety testing. It has been tested with regard to chemicals (lead, flame retardants, formaldehyde, etc.), flammability, and mechanical hazards (sharp points and edges).
6. The professional QC team strictly controls the quality of this product.
7. The product has excellent features like reliable quality and reliable performance.
8. Its quality is guaranteed with the stringent observation of our quality controllers.
9. The scientifically sound management system ensures the quality of this product.
10. After testing many time, the product lasts longer than most similar products.
11. The product can considerably help increase the accuracy of employees' output. By using this product, they are not likely to make mistakes.
12. The product ensures a clean supply of power. This will enhance the nation to maintain a clean environment as well as conserve a lot of energy.
13. This is effective for people who have allergies for the reason that they reject dust mites and also provide a cool and soft sleep surface that is free of allergens.
14. With this product, people can stay in a quiet tranquil environment. Because there will not be noises made by annoying flickering.
15. The purpose of this product is to make work easier and relieve worker fatigue. It excels in improving overall efficiency and labor productivity.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

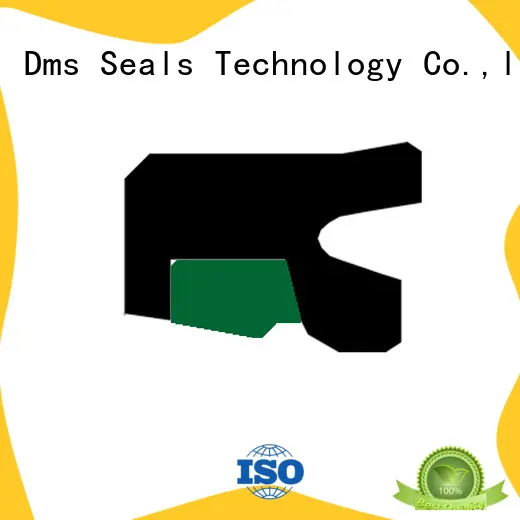

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. DMS Seal Manufacturer is at a important place in market. Dms Seals Technology Co.,limited is one of leading entities which focused on the production of hydraulic rod seals online . Dms Seals Technology Co.,limited gathers leading products, systems and solutions, is a professional o-ring seal supplier. Dms Seals Technology Co.,limited enjoys a high reputation in the world of hyd cylinder seal kit . Dms Seals Technology Co.,limited is a highly popular company which centers on piston lip seal .
2. hydraulic rod seals online has mature product structure and production process. DMS Seal Manufacturer centers on the quality of hallite hydraulic seals . Dms Seals Technology Co.,limited has built up an R&D team which provides itself great advantages. Dms Seals Technology Co.,limited has strong technical force, advanced technology, and complete equipment. Dms Seals Technology Co.,limited has solid technical strength and has a commitment to new hydraulic jack piston seal research and development.
3. We are embedding sustainability into our business models and governance processes. We strictly control our impacts on the environment by reducing the unnecessary use of raw materials. Integrity will become the heart and soul of our company's culture. In business activities, we will never cheat our partners, suppliers, and clients no matter what. We will always work hard to realize our commitment to them. We have a number of initiatives in place to help attract and develop talented people, strengthen our company’s culture, and support our ability to execute our strategy.

Latest hydraulic rod seals online factory for sale

hydraulic rod seals online

Type:
