nbrfkm hydraulic ptfe pneumatic piston seals DMS Seal Manufacturer manufacture 1

nbrfkm hydraulic ptfe pneumatic piston seals DMS Seal Manufacturer manufacture 2

nbrfkm hydraulic ptfe pneumatic piston seals DMS Seal Manufacturer manufacture

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. Dms Seals Technology Co.,limited works hard to make the quality and performance of piston seals products more in line with the needs of customers. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. To reduce costs with high-efficiency work is the DMS's purpose, DMS Seal Manufacturer Could Not Only Provides Quality hydraulic piston seals, pneumatic piston seals In Various Types But Also Offers Professional Services.
4. Combining the characteristics of hydraulic piston seals sizes and hydraulic piston seals, o-ring seal is designed and developed. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

Installation Recommendation

undefined

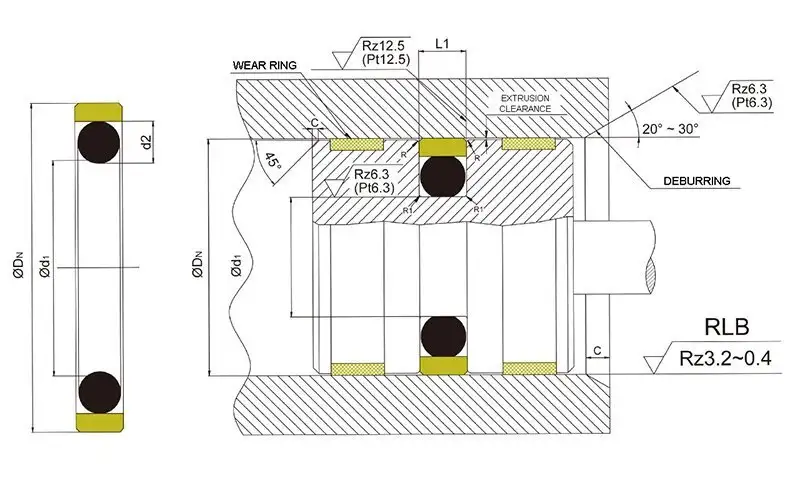

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

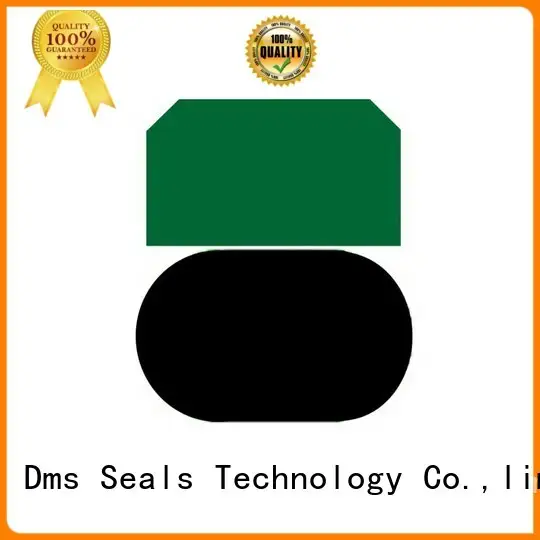

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2	Order No.	O-Ring Dimensions
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF83.12.2 GSF105.12.2 GSF127.12.2	2.901.78 4.801.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF149.12.2 GSF1510.12.2 GSF157.53.2	8.751.8 7.592.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF1611.12.2 GSF168.53.2 GSF1813.12.2	10.821.78 7.592.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF1810.53.2 GSF2015.12.2 GSF2012.53.2	9.192.62 14.001.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF2419.12.2 GSF2416.53.2 GSF2517.53.2	18.771.78 15.542.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25144.2 GSF2820.53.2 GSF28174.2	13.873.53 20.292.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF3022.53.2 GSF30194.2 GSF3224.53.2	21.892.62 26.701.78 23.47*2.62
32 35 35	21 27.5 24	4.2 3.2 4.2	GSF32214.2 GSF3527.53.2 GSF35244.2	20.223.53 26.642.62 23.40*3.53
36 36 38	28.5 25 30.5	3.2 4.2 3.2	GSF3628.53.2 GSF36254.2 GSF3830.53.2	28.242.62 23.393.53 29.82*2.62
38 40 40	27 32.5 29	4.2 3.2 4.2	GSF38274.2 GSF4032.53.2 GSF40294.2	25.863.53 31.422.62 28.17*3.53
45 45 48	37.5 34 40.5	3.2 4.2 3.2	GSF4537.53.2 GSF45344.2 GSF4840.53.2	36.52.62 32.923.53 36.09*3.53
48 50 50	37 39 34.5	4.2 4.2 6.3	GSF48374.2 GSF50394.2 GSF5034.56.3	36.093.53 37.703.53 32.69*5.33
52 52 55	41 36.5 44	4.2 6.3 4.2	GSF52414.2 GSF5236.56.3 GSF55444.2	40.873.53 355.33 44.04*3.53
55 56 56	39.5 45 40.5	6.3 4.2 6.3	GSF5539.56.3 GSF56454.2 GSF5640.56.3	385.33 44.043.53 39*5.33
60 60 63	49 44.5 52	4.2 6.3 4.2	GSF60494.2 GSF6044.56.3 GSF63524.2	47.223.53 42.55.33 50.39*3.53
63 64 64	47.5 53 48.5	6.3 4.2 6.3	GSF6347.56.3 GSF64534.2 GSF6448.56.3	465.33 51.53.53 46.99*5.33
65 65 70	54 49.5 59	4.2 6.3 4.2	GSF65544.2 GSF6549.56.3 GSF70594.2	53.573.53 485.33 56.74*3.53
70 75 75	54.5 64 59.5	6.3 4.2 6.3	GSF7054.56.3 GSF75644.2 GSF7559.56.3	53.345.33 63.093.53 56.52*5.33
80 80 85	69 64.5 74	4.2 6.3 4.2	GSF80694.2 GSF8064.56.3 GSF85744.2	66.273.53 62.875.33 72.62*3.53
85 90 90	69.5 79 74.5	6.3 4.2 6.3	GSF8569.56.3 GSF90794.2 GSF9074.56.3	69.225.33 78.973.53 72.39*5.33
95 95 100	84 79.5 89	4.2 6.3 4.2	GSF95844.2 GSF9579.56.3 GSF100894.2	82.143.53 78.745.33 88.49*3.53
100 105 105	84.5 94 89.5	6.3 4.2 6.3	GSF10084.56.3 GSF105944.2 GSF10589.56.3	81.925.33 91.673.53 88.27*5.33

Installation Dimensions
