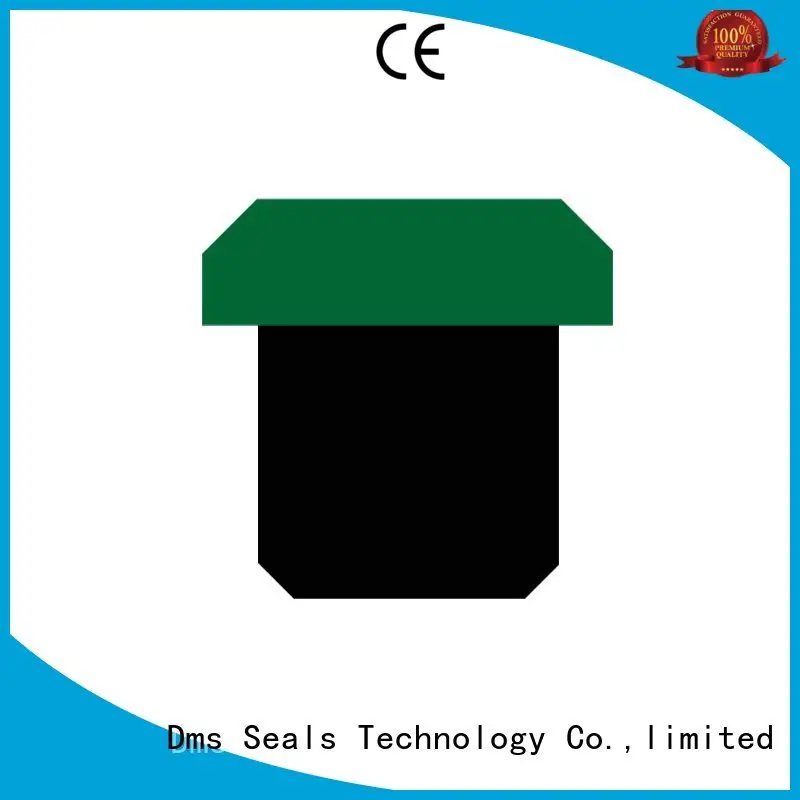

OK - PTFE Hydraulic Piston Seal with NBR/FKM O-Ring

Company Advantages
1. The design of DMS Seal Manufacturer hydraulic piston seals suppliers has taken the pneumatic principle into full consideration during the preliminary stage. And the product has to be tested to check whether the pneumatic function is optimized.
2. DMS Seal Manufacturer hydraulic piston seals suppliers is developed containing special Electro-Magnetic Interference Suppression Components. These components help reduce or eliminate noise caused by electromagnetism.
3. DMS Seal Manufacturer hydraulic piston seals suppliers is professionally designed. It is completed by our designers who conduct failure mode and effects analysis with advanced CAD tools to determine design performance.
4. hydraulic piston seals has the functions such as hydraulic piston seals suppliers , which is used in pneumatic piston seals .
5. The material for hydraulic piston seals is imported and has the advantage of good reliability and hydraulic piston seals suppliers .
6. Our hydraulic piston seals has edges in simple structure, hydraulic piston seals suppliers , easy maintenance and high efficiency.
7. Dms Seals Technology Co.,limited will provide professional packaging design for hydraulic piston seals .
8. With good reputation of DMS Seal Manufacturer, this product is more worthy of customers' trust.
9. Dms Seals Technology Co.,limited has formed a rapid global network.

1. Installation Recommendation

2. Application and properties

Extreme wear resistance, easy installation on single-part piston without assembly aids due to the split design of the sealing ring. Assembly on one-part piston is possible. Insensitive to extreme pressure peaks. Extreme high extreme pressure resistance. High pressure an large gaps due to the special compound properties of the seal ring. Dimensions according to ISO 7425-1. Short axial assembly length. Installation in closed and undercut housings. Additional sizes of machined products available on short notice.

3. Standard materials

Sealing ring: filled modified thermoplast

O-ring: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed
25 - 480mm	0 - 80MPa	-30℃ +110℃	≤1 m/s

5. Installation Dimensions

D1	d1	L	Order No.
25 32 40	16 21 26.3	4.2 4.2 5.8	OK25*16*4.2 OK32*21*4.2 OK40*26.3*5.8
40 50 50	29 34.5 36.3	4.2 6.3 5.8	OK40*29*4.2 OK50*34.5*6.3 OK50*36.3*5.8
50 50 55	37 39 44	8 4.2 4.2	OK50*37*8 OK50*39*4.2 OK55*44*4.2
55 60 60	44 41.7 49	4.2 7 4.2	OK55*44*4.2 OK60*41.7*7 OK60*49*4.2
63 63 63	44.7 47.5 52	7 6.3 4.2	OK63*44.7*7 OK63*47.5*6.3 OK63*52*4.2
70 70 70	51.7 54.5 54.5	7 6.3 6.3	OK70*51.7*7 OK70*54.5*6.3 OK70*54.5*6.3
70 75 75	59 54 59.5	4.2 8 6.3	OK70*59*4.2 OK75*54*8 OK75*59.5*6.3
80 80 85	59 64.5 64	8 6.3 8	OK80*59*8 OK80*64.5*6.3 OK85*64*8
90 90 95	69 74.5 74	8 6.3 8	OK90*69*8 OK90*74.5*6.3 OK95*74*8
100 100 105	79 84.5 84	8 6.3 8	OK100*79*8 OK100*84.5*6.3 OK105*84*8
110 110 115	89 94.5 94	8 6.3 8	OK110*89*8 OK110*94.5*6.3 OK115*94*8
115 120 125	100 99 104	8 8 8	OK115*100*8 OK120*99*8 OK125*104*8
125 130 130	109.5 109 114.5	6.3 8 6.3	OK125*109.5*6.3 OK130*109*8 OK130*114.5*6.3
130 135 135	115 114 119.5	8 8 6.3	OK130*115*8 OK135*114*8 OK135*119.5*6.3
140 140 145	119 125 124	8 8 8	OK140*119*8 OK140*125*8 OK145*124*8
150 150 152.4	129 135 131.5	8 8 8	OK150*129*8 OK150*135*8 OK152.4*131.5*8
160 160 165	139 148 144	8 8 8	OK160*139*8 OK160*148*8 OK165*144*8
170 175 180	149 154 159	8 8 8	OK170*149*8 OK175*154*8 OK180*159*8
190 200 210	169 179 189	8 8 8	OK190*169*8 OK200*179*8 OK210*189*8
220 220 230	199 205 209	8 8 8	OK220*199*8 OK220*205*8 OK230*209*8
240 250 260	225 229 239	8 8 8	OK240*225*8 OK250*229*8 OK260*239*8
270 280 290	249 255.5 271	8 8 9.5	OK270*249*8 OK280*255.5*8 OK290*271*9.5
300 320 330	272 292 302	9.5 9.5 9.5	OK300*272*9.5 OK320*292*9.5 OK330*302*9.5
350 370 420	322 342 392	9.5 9.5 9.5	OK350*322*9.5 OK370*342*9.5 OK420*392*9.5
450 480	422 452	9.5 9.5	OK450*422*9.5 OK480*452*9.5

Company Features
1. Dms Seals Technology Co.,limited is a leading manufacturer and supplier of hydraulic piston seals for global customers. Dms Seals Technology Co.,limited takes pride in itself with its excellent track record of manufacturing a range of piston seals . Dms Seals Technology Co.,limited is great at producing garnished o-ring seal with high performance.
2. Dms Seals Technology Co.,limited has greatly enhanced the R&D ability for hydraulic piston seals production. The cutting-edge technology improves the quality of hydraulic piston seals . By continuously strengthening hardware construction, DMS Seal Manufacturer has the capability to provide hydraulic piston seals with hydraulic piston seals suppliers .
3. Implementing the tenet of hydraulic piston seals with our heart and soul, we sincerely serve the enterprise. Please contact. Enhancing the competitiveness of DMS Seal Manufacturer in hydraulic piston seals industry. Please contact. Dms Seals Technology Co.,limited will respect every customer's requirement and try to do it well. Please contact. Dms Seals Technology Co.,limited would like to build long-term cooperation relationships with you. Please contact. Dms Seals Technology Co.,limited upholds the concept of stable operation and adheres to pneumatic piston seals . Please contact.

OK - PTFE Hydraulic Piston Seal with NBR/FKM O-Ring

hydraulic piston seals

Type:
