DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
oring rotary hydraulic rotary shaft seals DMS Seal Manufacturer manufacture
1. Quality control of the seals is the basis for DMS Seals. DMS Seal Manufacturer factory has established itself as a leading manufacturer, trader, and manufacture of rotary shaft seals in the market.
2. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. DMS Seal Manufacturer is full of vitality, energy and warrior spirit.
3. To reduce costs with high-efficiency work is the DMS's purpose, We Aims At Establishing Business Relations With You On rotary seals, rotary seals manufacturer, rotary seals catalogue Industry.
4. DMS Seals provides professional design and production of high-grade o-ring seals, DMS Seal Manufacturer Is A Leading rotary shaft seals, rotary shaft seals Company, Who Has Strong Desire To Offer High Quality Product.
5. DMS Seal manufacturer provides good quality and competitive price hydraulic seals, DMS Seal Manufacturer Offers A Wide Range Of o-ring seal, rotary seals manufacturer At Reasonable Price To Customers From All Over The World.

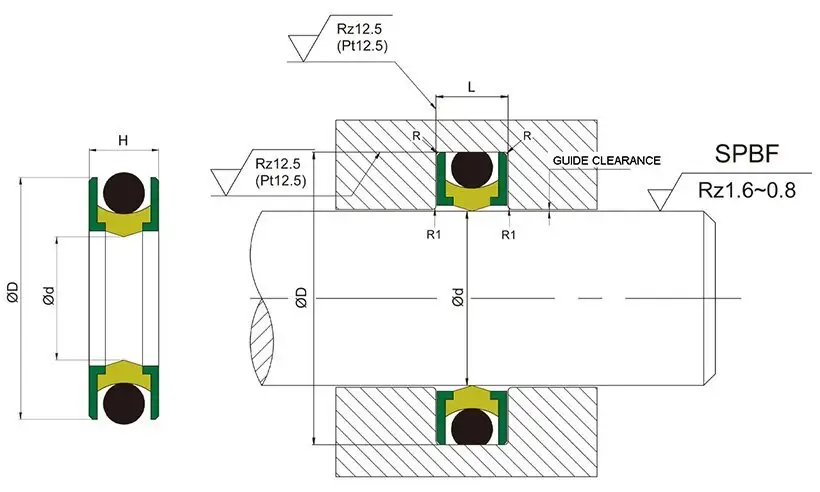

Rod Diameter | Groove Diameter | Seal Width | Groove Width | Guide Clearance S max | |
d e8 | D H9 | H | L | 0-10MPa | 15-36MPa |
50-79 | d+10.0 | 4.5 | 5.0 | 0.40-0.30 | 0.30-0.25 |
80-109 | d+13.8 | 7.0 | 7.5 | 0.45-0.35 | 0.35-0.30 |
110-299 | d+20.0 | 9.5 | 10.0 | 0.55-0.45 | 0.45-0.35 |
300-600 | d+24.0 | 12.5 | 13.0 | 0.60-0.55 | 0.55-0.45 |
Application and properties

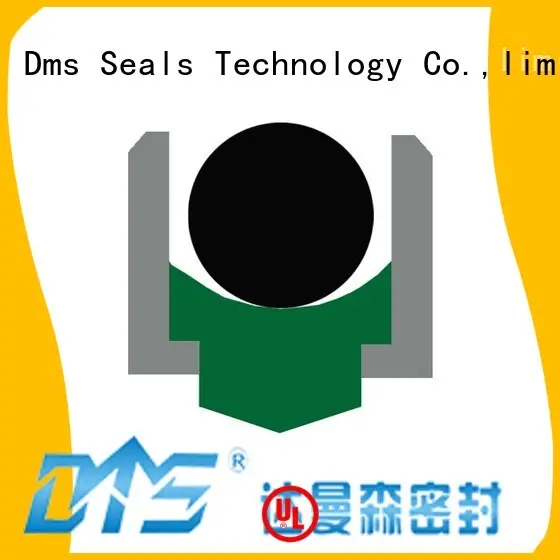

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-36MPa | -36℃+100℃ | 0.5 m/s | hydraulic oil, flame retardant liquid, water and others |
d e8 | D H9 | H | L | e | Order No. |
50 | 60 | 4.5 | 5 | 7 | OI50*60*4.5 |
65 | 75 | 4.5 | 5 | 7 | OI65*75*4.5 |
80 | 93.8 | 7.0 | 7.5 | 7 | OI80*93.8*7 |
95 | 108.8 | 7.0 | 7.5 | 7 | OI95*108.8*7 |
115 | 135 | 9.5 | 10 | 10 | OI115*135*9.5 |
130 | 150 | 9.5 | 10 | 10 | OI130*150*9.5 |
160 | 180 | 9.5 | 10 | 10 | OI160*180*9.5 |
190 | 210 | 9.5 | 10 | 10 | OI190*210*9.5 |
225 | 245 | 9.5 | 10 | 10 | OI225*245*9.5 |
Company Features
1. Dms Seals Technology Co.,limited is a leading rotary seals enterprise which has superiority in innovation.
2. Dms Seals Technology Co.,limited has a strong and complete production capacity.
3. We are committed to delivering operational excellence and the lowest cash cost of production.
Professional O Ring Suppliers & O Ring Manufacturers
