Company Advantages1. DMS Seal Manufacturer pneumatic piston seals has gone through some important production stages. They cover the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. Dms Seals Technology Co.,limited has a solid foundation and ability of research and product development on piston seals . Our products mainly include
rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
3. The main character of the piston seals is that it has pneumatic piston seals . DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
4. The improved piston seals has the advantages of pneumatic piston seals . DMS Seals' production equipment and test equipment are on the leading level in the industry
5. piston seals has the functions such as pneumatic piston seals as compared with other similar products. DMS Seals provides professional design and production of high-grade
o-ring seals

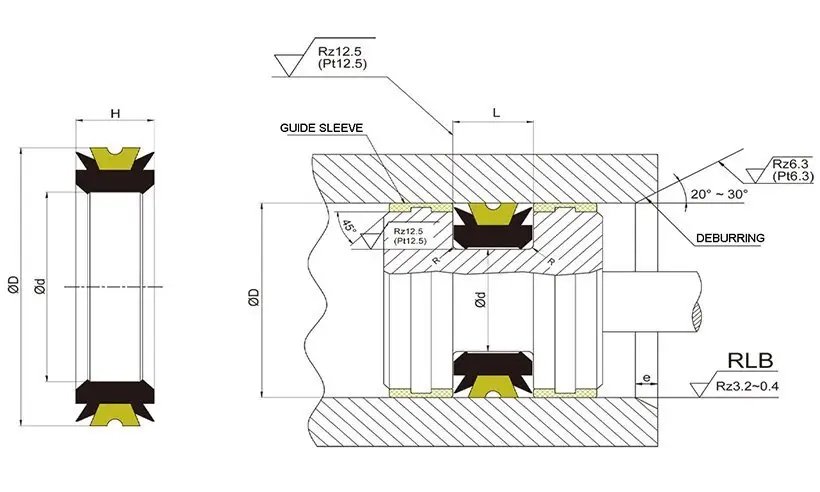

Installation Recommendation
![undefined undefined]()
Application and properties
Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.
Sealing ring: filled PTFE
Elastomer: NBR / PU
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-25MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L+0.2 | e | Order No. |
40 45 50 | 30 35 40 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA40*30*16 DDMA45*35*16 DDMA50*40*16 |
56 63 65 | 46 53 55 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA56*46*16 DDMA63*53*16 DDMA65*55*16 |
70 75 80 | 60 65 70 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA70*60*16 DDMA75*65*16 DDMA80*70*16 |
85 90 95 | 75 80 85 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA85*75*16 DDMA90*80*16 DDMA95*85*16 |
100 105 115 | 90 95 105 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA100*90*16 DDMA105*95*16 DDMA115*105*16 |
120 125 130 | 110 113 118 | 15 15 15 | 16 16 16 | 7 10 10 | DDMA120*110*16 DDMA125*113*16 DDMA130*118*16 |
135 140 145 | 123 128 133 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA135*123*16 DDMA140*128*16 DDMA145*133*16 |
150 155 160 | 138 143 148 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA150*138*16 DDMA155*143*16 DDMA160*148*16 |
170 180 190 | 158 168 178 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA170*158*16 DDMA180*168*16 DDMA190*178*16 |
200 210 220 | 188 198 208 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA200*188*16 DDMA210*198*16 DDMA220*208*16 |
225 235 240 | 213 223 228 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA225*213*16 DDMA235*223*16 DDMA240*228*16 |
Company Features1. Our products are hot sale in Southern Asia, America, and Australia countries, and win a good reputation. We have provided product solutions to many international famous brands over these years.
2. Dms Seals Technology Co.,limited will always put quality in the first place . Please contact.
