DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

pneumatic piston seals hydraulic piston DMS Seal Manufacturer Brand company

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. Owing to its various quality attributes, provided pneumatic piston seals is highly appreciated by DMS Seal Manufacturer clients.
2. Dms Seals Technology Co.,limited's customer service always works on a professional level. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. DMS Seals provides professional design and production of high-grade o-ring seals. The quality of our piston seals,hydraulic piston seals sizes is so great that you can definitely rely on.
4. We can support OEM and ODM. You can easily operate the hydraulic piston seals,hydraulic piston seals by simply hydraulic cylinder piston seals.

Installation Recommendation

undefined

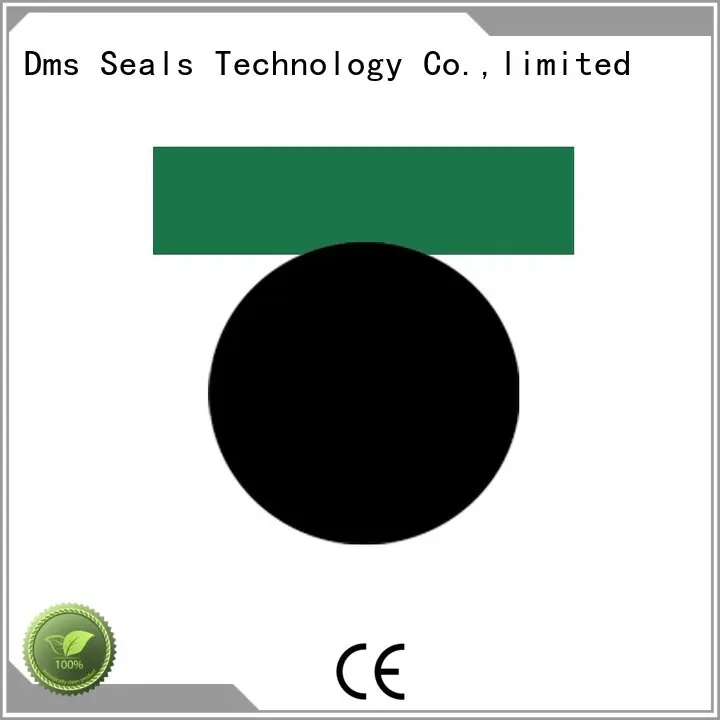

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. DMS Seal Manufacturer specializes in manufacturing piston seals with high quality and reasonable price. - Adversity Successfully Overcome Is The Highest Glory. DMS Seal Manufacturer Offers A Wide Range Of hydraulic piston seals, pneumatic piston seals, hydraulic piston seals sizes At Reasonable Price To Customers From All Over The World. Please Contact Us!
2. o-ring seal is the life of an enterprise which needs the full concentration and meticulous of employees during the work.
3. Dms Seals Technology Co.,limited has solidified and advanced its piston seals production ability with modern technology. - DMS Seal Manufacturer focuses on continuous technological innovation to improve products and services. Get quote!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
