DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

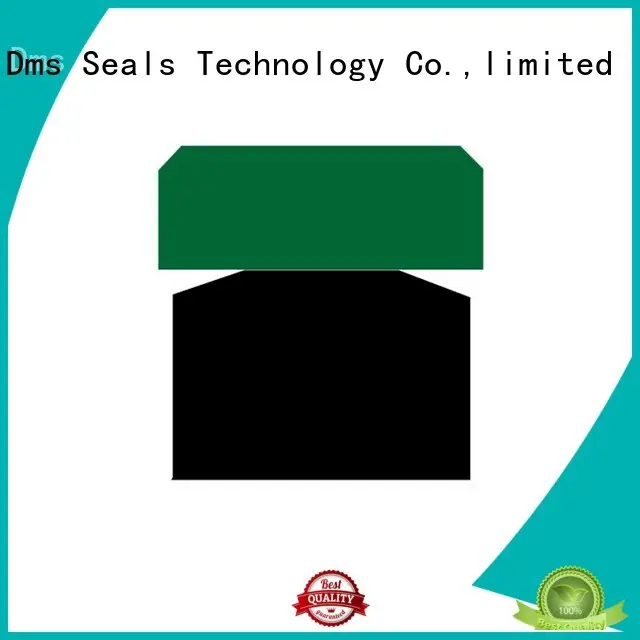

pneumatic piston seals hydraulic ptfe Bulk Buy piston DMS Seal Manufacturer 1

pneumatic piston seals hydraulic ptfe Bulk Buy piston DMS Seal Manufacturer 2

pneumatic piston seals hydraulic ptfe Bulk Buy piston DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+100℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. To reduce costs with high-efficiency work is the DMS's purpose. DMS Seal Manufacturer material for pneumatic piston seals is different from other companies' material and it's better.
2. Seal we produced has applications in a wide range of fields. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. piston seals has many virtues such as hydraulic piston seals sizes and so on. Quality control of the seals is the basis for DMS Seals

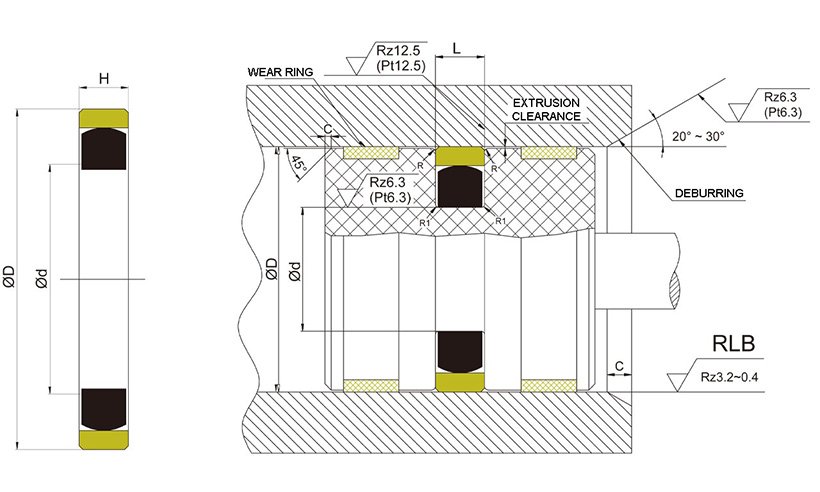

Installation Recommendation

undefined

Installation Sizes

Bore Diameter	Groove Diameter	Groove Width	Radius	Radial Clearance S max.
D H8	d h8	L1+0.2	R1	16MPa	26MPa	32MPa	40MPa
55.0-149.9	D-10.0	10.0	0.4	0.60	0.50	0.40	0.40
150.0-244.9	D-12.5	12.5	0.4	0.75	0.65	0.55	0.50
245.0-500.0	D-15.0	15.0	0.8	0.75	0.65	0.55	0.50
500.1-760.0	D-17.5	17.5	1.2	0.75	0.65	0.55	0.50
760.1-999.9	D-20.0	20.0	1.2	0.80	0.70	0.60	0.55
≧1000	D-20.0	20.5	1.2	0.80	0.70	0.60	0.55

Application and properties

Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+100℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.
D H8	d h8	L+0.2	Order No.
55 60 70	40 45 55	10 10 10	GSF-W554010 GSF-W604510 GSF-W705510
80 90 100	60 70 80	10 10 10	GSF-W806010 GSF-W907010 GSF-W1008010
110 115 120	90 95 100	10 10 10	GSF-W1109010 GSF-W1159510 GSF-W12010010
130 140 150	110 120 125	10 10 12.5	GSF-W13011010 GSF-W14012010 GSF-W15012512.5
160 165 170	135 140 145	12.5 12.5 12.5	GSF-W16013512.5 GSF-W16514012.5 GSF-W17014512.5
180 185 190	155 160 165	12.5 12.5 12.5	GSF-W18015512.5 GSF-W18516012.5 GSF-W19016512.5
200 205 210	175 180 185	12.5 12.5 12.5	GSF-W20017512.5 GSF-W20518012.5 GSF-W21018512.5
215 220 225	190 195 200	12.5 12.5 12.5	GSF-W21519012.5 GSF-W22019512.5 GSF-W22520012.5
230 240 245	205 215 215	12.5 12.5 15	GSF-W23020512.5 GSF-W24021512.5 GSF-W24521515

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is a Chinese manufacturer of high quality piston seals. - Equipped with a complete set of quality control technology, hydraulic piston seals can be guaranteed with good quality.
2. Improving quality supervision during the o-ring seal production is another process to ensure the quality.
3. Equipped with high precision components and manufactured with latest technology, DMS Seal Manufacturer piston seals are used for pneumatic piston seals. - DMS Seal Manufacturer's devotion is to offer the most professional customer service which ranks top in hydraulic piston seals industry. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
