ptfe Custom piston piston seals nbrfkm DMS Seal Manufacturer 1

ptfe Custom piston piston seals nbrfkm DMS Seal Manufacturer 2

ptfe Custom piston piston seals nbrfkm DMS Seal Manufacturer

Diameter Range:

50-350mm

Pressure Range:

0－50MPa

Temperature Range:

-30℃ +100℃

Speed:

1.5 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. Dms Seals Technology Co.,limited works hard to make the quality and performance of piston seals products more in line with the needs of customers. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. With simple pneumatic piston seals design for ease of hydraulic piston seals sizes, DMS Seal Manufacturer hydraulic piston seals offers utmost convenience for users. The high pressure seals have strong wear resistance to hard conditions.

Installation Recommendation

undefined

Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

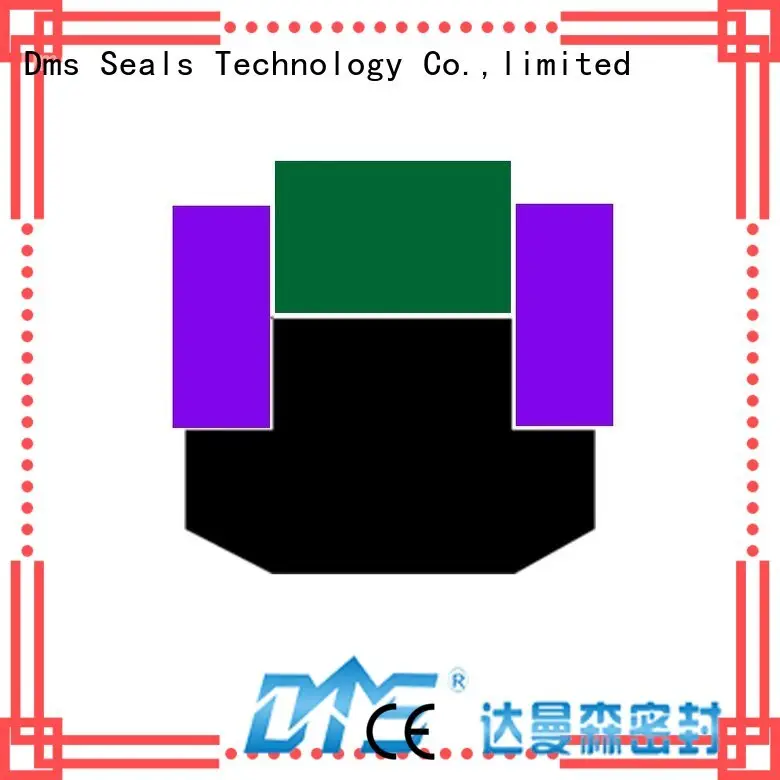

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Back-up ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50-350mm	0－50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

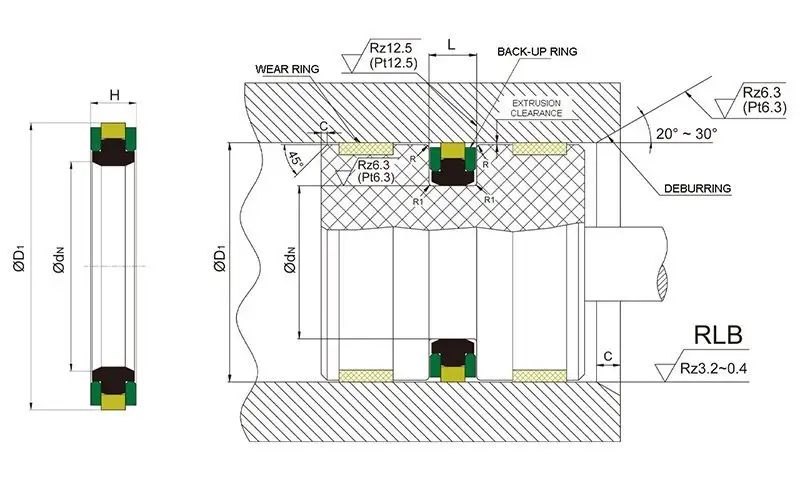

Installation Dimensions

Groove Sizes			L+0.2	Order No.
D1	dN	H	L+0.2	Order No.
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50368.5 SPGW55418.5 SPGW60468.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW634810.5 SPGW655010.5 SPGW705510.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW756010.5 SPGW806510.5 SPGW857010.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW907510.5 SPGW958010.5 SPGW1008512
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW1059012 SPGW1109512 SPGW11510012
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW12010512 SPGW12510215.5 SPGW13010715.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW13511215.5 SPGW14011715.5 SPGW14512215.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW15012715.5 SPGW15513215.5 SPGW16013715.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW16514215.5 SPGW17014715.5 SPGW18015715.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW18516215.5 SPGW19016715.5 SPGW20017715.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW21018715.5 SPGW22019715.5 SPGW22520215.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW23020715.5 SPGW24021715.5 SPGW25022217
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW26023217 SPGW27024217 SPGW28025217
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW30027217 SPGW32029217 SPGW35032217

Company Features
1. Dms Seals Technology Co.,limited gathers industry elites to produce the best piston seals. - Our professional technician strictly operate machines to ensure its normal operation and produce high quality hydraulic piston seals.
2. To meet customer's requirements, DMS Seal Manufacturer always keeps the innovative technology to produce o-ring seal.
3. Dms Seals Technology Co.,limited boasts its advanced production technology. - We can customize solutions to making piston seals for your own pneumatic piston seals use.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
