Quality DMS Seal Manufacturer Brand ptfe oring rod seals

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Product Comparison

Compared with similar products, 's Oil Seal Manufacturer has the following advantages.

Application Scope

's O-ring Seal can be used in multiple industries and fields. has been engaged in the production of O-ring Seal for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Company Advantages
1. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. DMS Seal Manufacturer can provide the best hydraulic rod sealsto DMS Seal Manufacturer customers all over the world. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
2. DMS Seals takes the lead in grasping the development trend of the industry. rod seals,piston rod seal has low maintenance.
3. Dms Seals Technology Co.,limited has a very strong competitive advantage. DMS Seals implements and optimizes its quality control systems

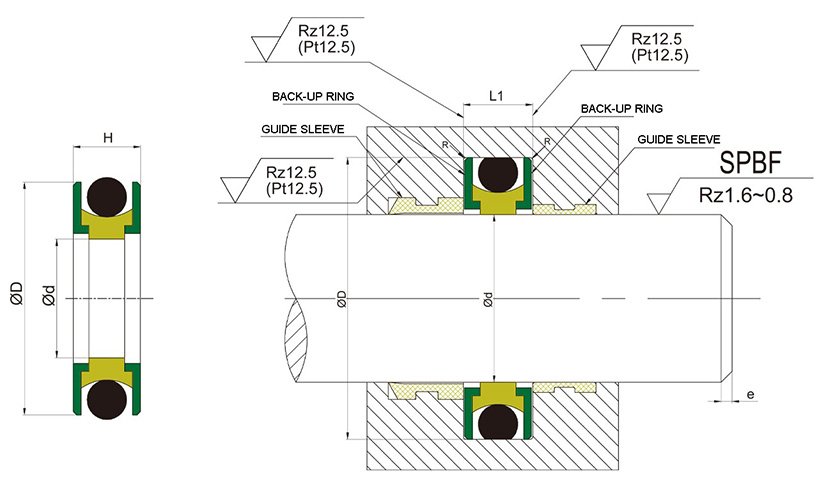

Installation Recommendation

undefined

Installation Sizes

d e8	D H9	L D10	H	Ø - range	e
22-39	d+7.2	4.0	3.5	20-56	6
40-79	d+10.0	5.0	4.5	60-100	7
80-100	d+13.8	7.5	7.0	105-290	10
＞100-250	d+20.0	10.0	9.5	300-630	15
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

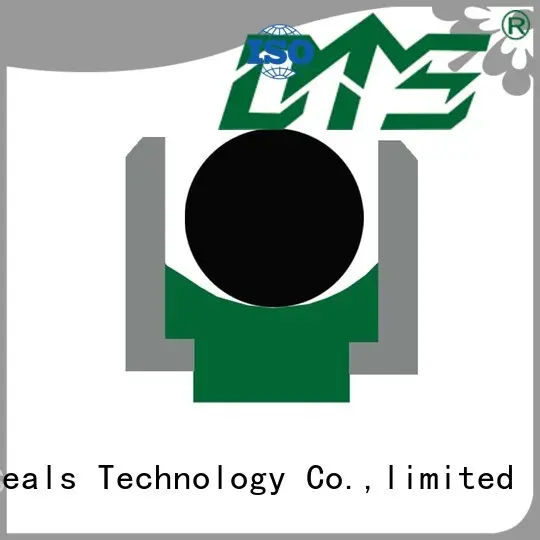

Application and properties

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI2229.23.5 RDI2532.23.5 RDI2835.23.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI3037.23.5 RDI3239.23.5 RDI3542.23.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI3643.23.5 RDI40504.5 RDI42524.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45554.5 RDI50604.5 RDI55654.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56664.5 RDI60704.5 RDI63734.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65754.5 RDI70804.5 RDI72824.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75854.5 RDI8093.87.0 RDI8598.87.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90103.87.0 RDI95108.87.0 RDI100113.87.0

Installation Dimensions

Company Features
1. We provide customers with hydraulic rod seals years of device development experience. DMS Seal Manufacturer
2. piston rod seal materials are used to ensure the safety of rod seals.
3. Dms Seals Technology Co.,limited will be fully prepared for the company's industrial layout and strategic development. Check now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
