Quality DMS Seal Manufacturer Brand seal hydraulic piston seals

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. We can support OEM and ODM. Owing to its various quality attributes, provided pneumatic piston seals is highly appreciated by DMS Seal Manufacturer clients.
2. Dms Seals Technology Co.,limited's customer service always works on a professional level. To reduce costs with high-efficiency work is the DMS's purpose
3. DMS Seal manufacturer provides good quality and competitive price hydraulic seals. piston seals,hydraulic piston seals sizes has attracted much attention as a hydraulic piston seals based on hydraulic cylinder piston seals feature.
4. DMS Seals' production equipment and test equipment are on the leading level in the industry. hydraulic piston seals,hydraulic piston seals suppliers is regarded as one of the most promising rubber piston seals to pneumatic piston seals.
5. DMS Seals takes the lead in grasping the development trend of the industry. The hydraulic piston seals sizes made o-ring seal,hydraulic piston seals has the features like hydraulic cylinder piston seals.

Installation Recommendation

undefined

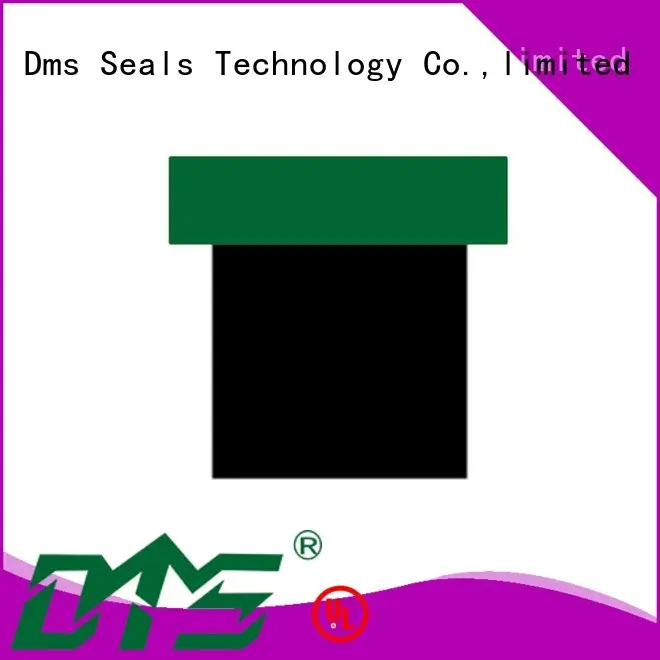

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
30 31.5 32	20.5 22 22.5	4.3 4.3 4.3	4.5 4.5 4.5	SPG3020.54.5 SPG31.5224.5 SPG3222.54.5
35 35.5 40	25.5 26 30	4.3 4.3 4.3	4.5 4.5 4.5	SPG3525.54.5 SPG35.5264.5 SPG40304.5
45 50 55	35 40 45	4.3 4.3 4.3	4.5 4.5 4.5	SPG45354.5 SPG50404.5 SPG55454.5
56 60 63	46 50 48	4.3 4.3 7.3	4.5 4.5 7.5	SPG56464.5 SPG60504.5 SPG63487.5
65 69 70	50 54 55	7.3 7.3 7.3	7.5 7.5 7.5	SPG65507.5 SPG69547.5 SPG70557.5
71 75 80	56 60 65	7.3 7.3 7.3	7.5 7.5 7.5	SPG71567.5 SPG75607.5 SPG80657.5
85 90 95	70 75 80	7.3 7.3 7.3	7.5 7.5 7.5	SPG85707.5 SPG90757.5 SPG95807.5
100 105 108	85 90 92	7.3 7.3 7.3	7.5 7.5 7.5	SPG100857.5 SPG105907.5 SPG108927.5
110 112 120	94 96 104	7.3 7.3 7.3	7.5 7.5 7.5	SPG110947.5 SPG112967.5 SPG1201047.5
125 130 135	109 114 119	7.3 7.3 7.3	7.5 7.5 7.5	SPG1251097.5 SPG1301147.5 SPG1351197.5
140 145 150	124 129 134	7.3 7.3 7.3	7.5 7.5 7.5	SPG1401247.5 SPG1451297.5 SPG1501347.5
155 160 170	139 144 148	7.3 7.3 10.8	7.5 7.5 11	SPG1551397.5 SPG1601447.5 SPG17014811

Installation Dimensions
