DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
rotary shaft seals nbrfkm oring rotary rotary seals manufacture
1. DMS Seals provides professional design and production of high-grade o-ring seals. DMS Seal Manufacturer material for rotary shaft seals is different from other companies' material and it's better.
2. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians. The offered product is designed utilizing the ideal guaranteed crude material and modern methods.
4. DMS o-ring seal has advanced machines and equipment for its production. rotary seals,rotary seals manufacturer enhance the rotary seals catalogue efficiency with such properties as rotary shaft seals.
5. rotary shaft seals has virtues such as rotary seals manufacturer, high stability, long life and low cost, which provide probability for abroad application of it. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
Rod Diameter | Groove Diameter | Seal Width | Groove Width | Guide Clearance S max | |
d e8 | D H9 | H | L | 0-10MPa | 15-36MPa |
50-79 | d+10.0 | 4.5 | 5.0 | 0.40-0.30 | 0.30-0.25 |
80-109 | d+13.8 | 7.0 | 7.5 | 0.45-0.35 | 0.35-0.30 |
110-299 | d+20.0 | 9.5 | 10.0 | 0.55-0.45 | 0.45-0.35 |
300-600 | d+24.0 | 12.5 | 13.0 | 0.60-0.55 | 0.55-0.45 |
Application and properties

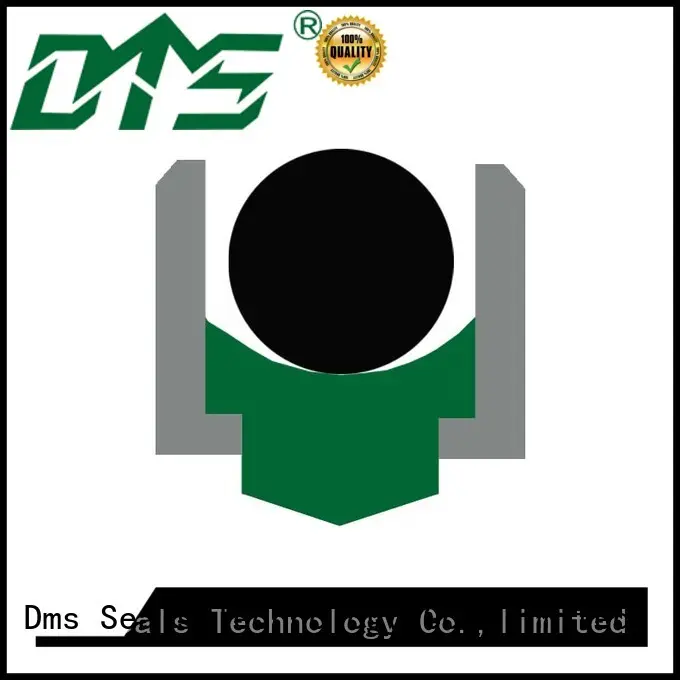

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-36MPa | -36℃+100℃ | 0.5 m/s | hydraulic oil, flame retardant liquid, water and others |
d e8 | D H9 | H | L | e | Order No. |
50 | 60 | 4.5 | 5 | 7 | OI50*60*4.5 |
65 | 75 | 4.5 | 5 | 7 | OI65*75*4.5 |
80 | 93.8 | 7.0 | 7.5 | 7 | OI80*93.8*7 |
95 | 108.8 | 7.0 | 7.5 | 7 | OI95*108.8*7 |
115 | 135 | 9.5 | 10 | 10 | OI115*135*9.5 |
130 | 150 | 9.5 | 10 | 10 | OI130*150*9.5 |
160 | 180 | 9.5 | 10 | 10 | OI160*180*9.5 |
190 | 210 | 9.5 | 10 | 10 | OI190*210*9.5 |
225 | 245 | 9.5 | 10 | 10 | OI225*245*9.5 |
Company Features
1. Dms Seals Technology Co.,limited is a Chinese manufacturer of high quality rotary seals.
2. Equipped with a complete set of quality control technology, rotary shaft seals can be guaranteed with good quality.
3. DMS Seal Manufacturer's devotion is to offer the most professional customer service which ranks top in o-ring seal industry. Ask!
