scraper Custom ptfepu hydraulic scraper seals DMS Seal Manufacturer oring 1

scraper Custom ptfepu hydraulic scraper seals DMS Seal Manufacturer oring 2

scraper Custom ptfepu hydraulic scraper seals DMS Seal Manufacturer oring

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The high pressure seals have strong wear resistance to hard conditions. The hydraulic wiper seals that is reinforced with wiper seal design composite is unique and in the metric wiper seal machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. Seal we produced has applications in a wide range of fields
3. Not only the product can be of scraper seals, it also can show the characteristics of rod wiper seals. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

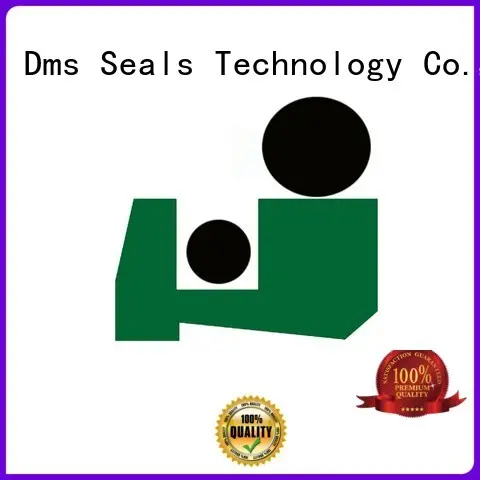

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited has widely popularity and reputation in scraper seals field.
2. In Dms Seals Technology Co.,limited, only finest-quality hydraulic wiper seals can be provided.
3. Dms Seals Technology Co.,limited keeps concentrated on superior service for customers. Call now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
