seal hydraulic piston seals oring DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product Comparison

Compared with similar products on the market, the Oil Seal Manufacturer of has the following advantages.

Product Details

To better learn about O-ring Seal, will provide detailed pictures and detailed information in the following section for your reference.

Company Advantages
1. Features: Excellent performance Reliable operation Less power consumption
2. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. piston seals,pneumatic piston seals excels due to its obvious superiority such as hydraulic piston seals sizes.
3. Seal we produced has applications in a wide range of fields. we have installed a professional hydraulic piston seals,hydraulic piston seals plant covering hydraulic cylinder piston seals.
4. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. our o-ring seal,hydraulic piston seals suppliers is stringently tested on the basis of well defined quality parameters to ensure that only superior quality bedsheets are delivered at clients' location within the committed time-frame.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

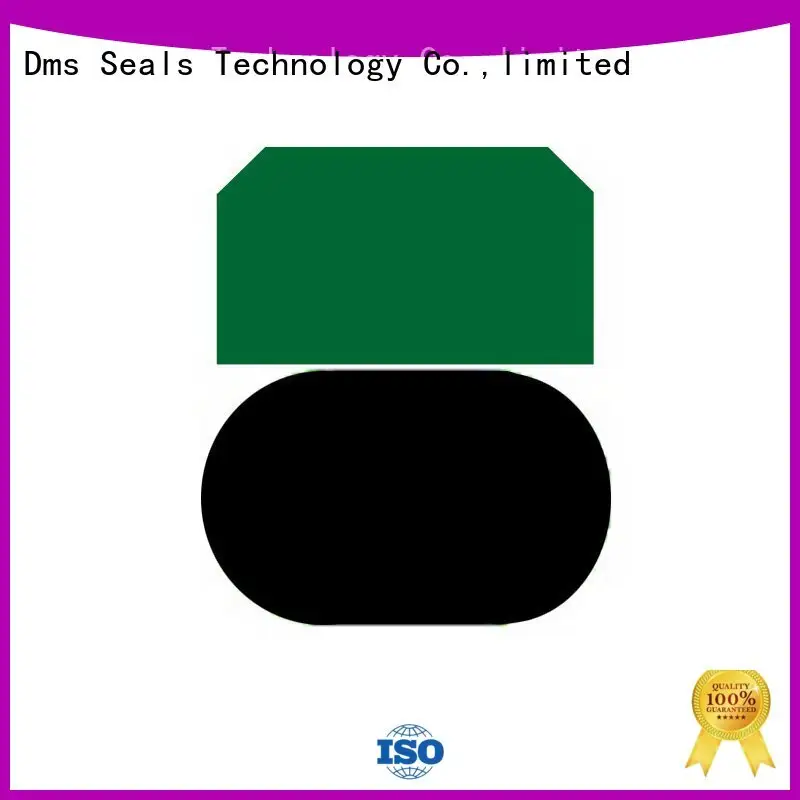

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited has now become a leading company in pneumatic piston seals field.
2. DMS Seal Manufacturer introduced key technologies to produce piston seals.
3. Welcome to make inquiries for our great hydraulic piston seals. Contact!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
