seal nbrfkm ptfe scraper seals DMS Seal Manufacturer Brand company

Diameter Range:

3-1600mm

Temperature Range:

-30℃+200℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Seal we produced has applications in a wide range of fields. Owing to its various quality attributes, provided hydraulic wiper seals is highly appreciated by DMS Seal Manufacturer clients.
2. Dms Seals Technology Co.,limited's customer service always works on a professional level. The high pressure seals have strong wear resistance to hard conditions
3. The product meets the highest level of quality and safety. We have developed solutions of the sealing of special working condition

Installation Recommendation

undefined

Installation Sizes

Rod Diameter d f8/h9		Groove Diameter	Groove Width	Step Diameter	Radius	Step Width
Standard Application	Suitable Application	D H9	L1+0.2	D1±0.1	R	a
140.0-229.9	100.0-450.0	d+22.2	6.3	d+10.7	1.2	4.2
230.0-299.9	220.0-450.0	d+24.2	6.3	d+10.7	1.2	4.2
300.0-629.9	250.0-650.0	d+33.0	8.1	d+15.1	1.2	6.3
630.0-999.9	550.0-999.9	d+36.5	9.5	d+15.1	2.0	6.3

Application and properties

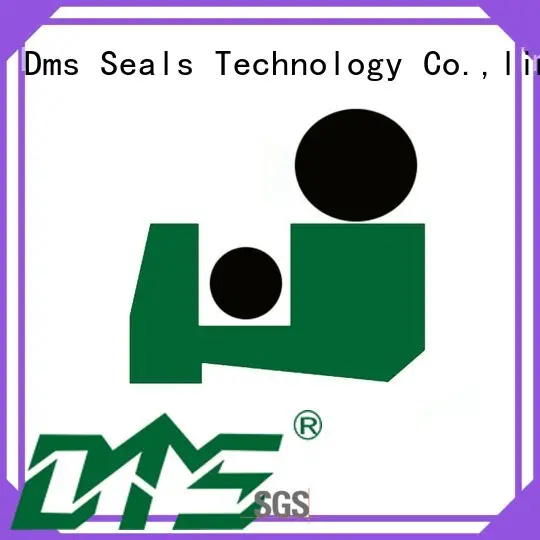

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm		-30℃+200℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8	D H9	H	L1+0.2	L1	Order No.
100 110 120	122.2 132.2 142.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-100122.26.3 DPT2-110132.26.3 DPT2-120142.26.3
130 140 150	152.2 162.2 172.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-130152.26.3 DPT2-140162.26.3 DPT2-150172.26.3
160 170 180	182.2 192.2 202.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-160182.26.3 DPT2-170192.26.3 DPT2-180202.26.3
190 200 210	212.2 222.2 232.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-190212.26.3 DPT2-200222.26.3 DPT2-210232.26.3
220 230 240	242.2 252.2 262.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-220242.26.3 DPT2-230252.26.3 DPT2-240262.26.3
250 260 270	272.2 282.2 292.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-250272.26.3 DPT2-260282.26.3 DPT2-270292.26.3
275 280 290	297.2 302.2 312.2	13.5 13.5 13.5	6.3 6.3 6.3	4.2 4.2 4.2	DPT2-275297.26.3 DPT2-280302.26.3 DPT2-290312.26.3
295 300 320	317.2 333 353	13.5 18.4 18.4	6.3 8.1 8.1	4.2 6.3 6.3	DPT2-295317.26.3 DPT2-3003338.1 DPT2-3203538.1
340 350 360	373 383 393	18.4 18.4 18.4	8.1 8.1 8.1	6.3 6.3 6.3	DPT2-3403738.1 DPT2-3503838.1 DPT2-3603938.1

Installation Dimensions
