seal o-ring seal with speed
1. The design style of DMS Seal Manufacturer pneumatic rod seals is in line with international standards. DMS Seals' production equipment and test equipment are on the leading level in the industry
2. Dms Seals Technology Co.,limited has gathered the industry elites and has advanced information management platform. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
3. The product shows the superiority of great performance compared with other products. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

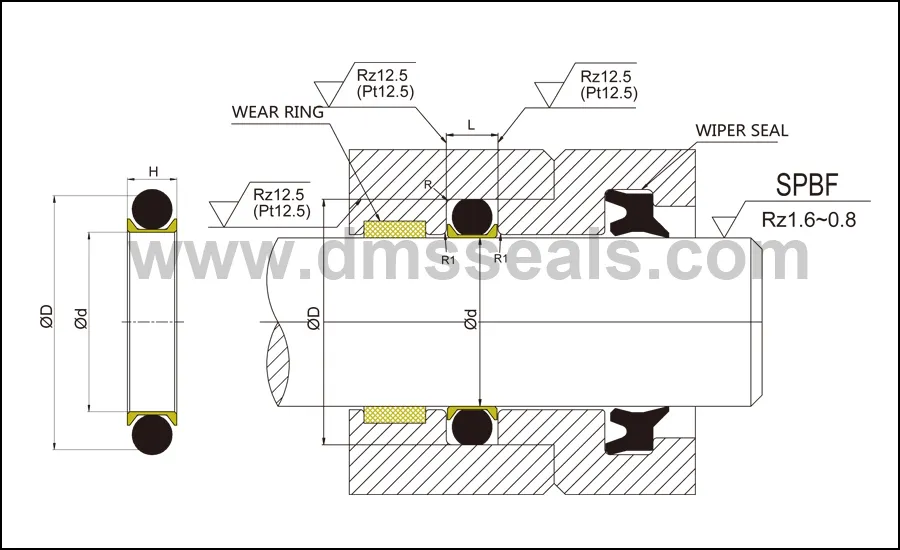

1. Installation Recommendation
2. Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

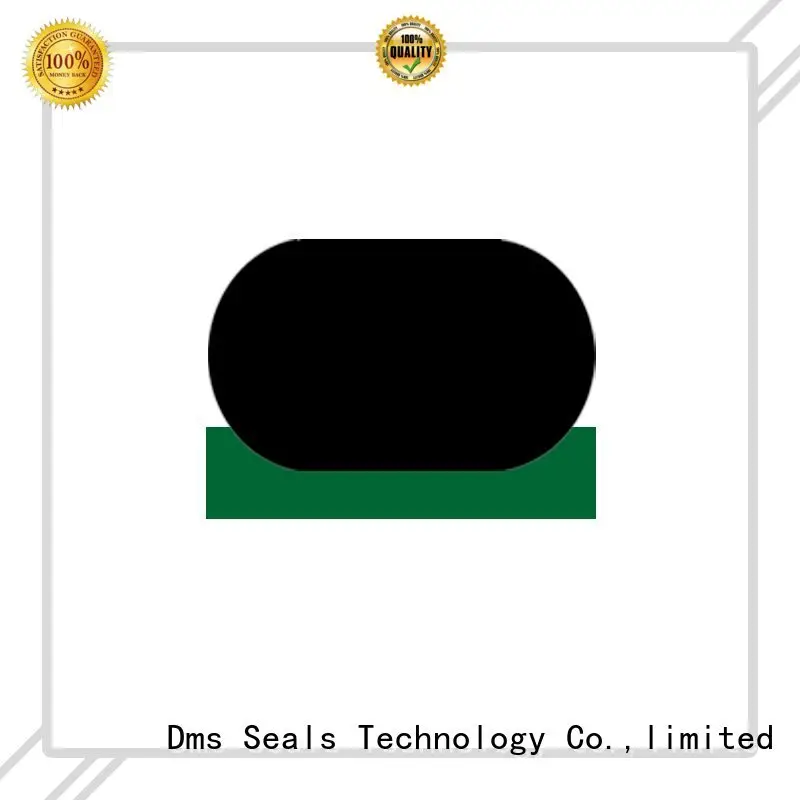

3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
5. Installation Dimensions
Order No. | ||||
d | D | H | L +0.2 | |
3 4 5 | 6 7 8 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5 |
6 7 8 | 9 10 11 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5 |
9 10 10 | 12 13 14 | 2.3 2.3 3.0 | 2.5 2.5 3.2 | SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2 |
11 11.2 12 | 15 15.2 16 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2 |
12.5 14 15 | 16.5 18 19 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2 |
16 18 20 | 20 22 24 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2 |
20 21 22 | 24 25 26 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2 |
22 22.4 24 | 28 28.4 30 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7 |
25 25.5 26 | 31 31.5 32 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7 |
28 29 29.5 | 34 35 35.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7 |
30 31 31.5 | 36 37 37.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7 |
32 34 35 | 38 40 41 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7 |
35.5 36 38 | 41.5 42 44 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7 |
