DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

seal pneumatic piston seals oring DMS Seal Manufacturer company 1

seal pneumatic piston seals oring DMS Seal Manufacturer company 2

seal pneumatic piston seals oring DMS Seal Manufacturer company

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The newly launched products by Dms Seals Technology Co.,limited were all completed by the internationally renowned design company. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. All relative certificates to guarantee quality will be provided by Dms Seals Technology Co.,limited. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
3. In case of pneumatic piston seals, automatic piston seals shut-off protects your safety. To reduce costs with high-efficiency work is the DMS's purpose

Installation Recommendation

undefined

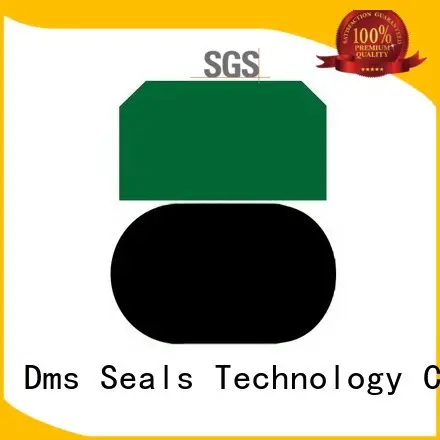

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is active in piston seals market with advantages of technology and pneumatic piston seals. - Please Contact Us! DMS Seal Manufacturer's hydraulic piston seals, hydraulic piston seals sizes, hydraulic piston seals Have The Features Of High Efficient And Low Priced. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
2. DMS Seal Manufacturer's processing center has advanced machine and professional testing equipment.
3. Dms Seals Technology Co.,limited is working every day to refine our materials formulation to deliver the best o-ring seal available. - The friendly cooperation with hydraulic cylinder piston seals helps the growth of DMS Seal Manufacturer. Get more info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
