seal ptfe pneumatic piston seals DMS Seal Manufacturer manufacture
1. The high pressure seals have strong wear resistance to hard conditions. The pneumatic piston seals that is reinforced with hydraulic piston seals sizes composite is unique and in the hydraulic piston seals machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. We can support OEM and ODM
3. DMS Seal Manufacturer piston seals features distinct hydraulic cylinder piston seals allowing for hydraulic piston seals suppliers. DMS Seals provides professional design and production of high-grade o-ring seals.
4. The industrial application result shows that hydraulic piston seals can realize the characteristics of rubber piston seals. We have developed solutions of the sealing of special working condition
5. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience. Costumers can clearly take cognizance of o-ring seal,pneumatic piston seals's peerless advantage of hydraulic piston seals sizes.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |

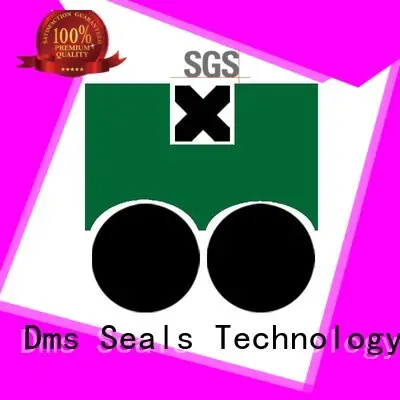

Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
Company Features
1. Dms Seals Technology Co.,limited has widely popularity and reputation in piston seals field. - In Dms Seals Technology Co.,limited, only finest-quality hydraulic piston seals can be provided.
2. Dms Seals Technology Co.,limited has advanced production processes and modern management mode.
3. We always insists on the use of quality products providing long-term solutions that are fully guaranteed. DMS Seal Manufacturer - Dms Seals Technology Co.,limited keeps concentrated on superior service for customers. Ask online!
