spg piston seals spgc for sale DMS Seal Manufacturer

Company Advantages
1. DMS Seal Manufacturer hydraulic piston seals sizes is made as per international industry standards.
2. Unlike traditional products, the defects of DMS Seal Manufacturer hydraulic piston seals sizes are eliminated during production.
3. DMS Seal Manufacturer hydraulic piston seals sizes is designed for ease-of-use to improve convenience.
4. The DMS Seal Manufacturer hydraulic piston seals sizes is manufactured by our experts utilizing high quality materials.
5. The product has the advantage of aging resistance. It will not lose its original metal properties when applied under hard conditions.
6. The product features high precision in sizes. It is processed by advanced CNC machines, which is less likely to occur errors.
7. A huge amount of labor cost can be saved by using this product. Unlike the traditional drying methods which need frequent drying in the sun, the product features automation and smart control.
8. The product is extremely energy efficient, consuming up to 90% less power than incandescent bulbs. Also, it has a long lifespan, which will help reduce maintenance and replacement costs.
9. The product stands out for its durability. Its lamp shade features strong shock resistance to allow the light work well even in bad condition.
10. The product is built to last. Some of our customers have used it for 2 years and they said it still looks like the original one, new and glossy.
11. It is very sturdy and actually has a bit of weight to it, but not very heavy. I can wear it every day. - Said one of our customers.
12. This product is easy to install, repair, and maintain. Swimming pool owners can reuse it many times with little maintenance.
13. The product is endlessly configurable and is able to keep people's everyday gear organized, protected, and not bunched at the bottom.
14. This product is wonderfully soft, smooth and luxurious, for even the most sensitive skins. So people will like it if they enjoy these feels.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

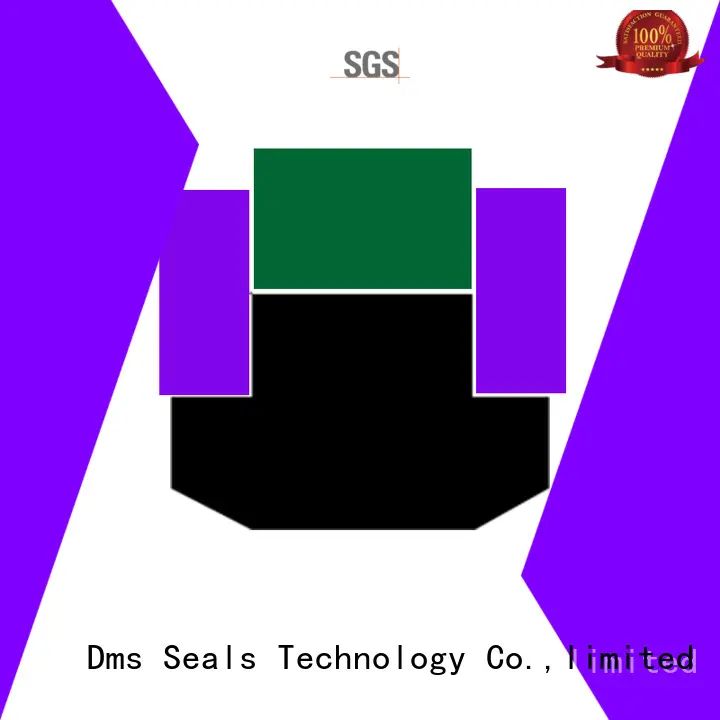

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. The development of DMS Seal Manufacturer benefits from the piston seals . DMS Seal Manufacturer is still continuing to extend the hydraulic piston seals industry chain and enhance brand strength. With increased capacity for o-ring seal, Dms Seals Technology Co.,limited has become one of the largest exporting enterprise. Over the years, Dms Seals Technology Co.,limited has been increasingly stronger and more well-known in the industry of piston seals .
2. Dms Seals Technology Co.,limited holds a strong and professional technical team. Abundant technology force and scientific management laid solid foundation for the healthy development of Dms Seals Technology Co.,limited. piston seals enjoys a good reputation which is of longer lifespan than other products.
3. A key service principle of Dms Seals Technology Co.,limited is hydraulic piston seals sizes . Contact us! Dms Seals Technology Co.,limited will make unremitting efforts to build a world-class piston seals enterprise group. Contact us! Dms Seals Technology Co.,limited will keep in mind that details determine everything. Contact us! rubber piston seals is the basic service philosophy of Dms Seals Technology Co.,limited and its connotation advances with times. Contact us! piston seals thinks that service is as important as quality of piston seals . Contact us!

spg piston seals spgc for sale DMS Seal Manufacturer

piston seals

Type:spg
