Valave Application Carbon PTFE Rotary Seals Grs
5.0
Diameter Range:
20-600mm
Pressure Range:
0-40MPa
Temperature Range:
-45℃+200℃
Speed:
≤15m/s
Medium:
Hydraulic oil, emulsion, water
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
bg

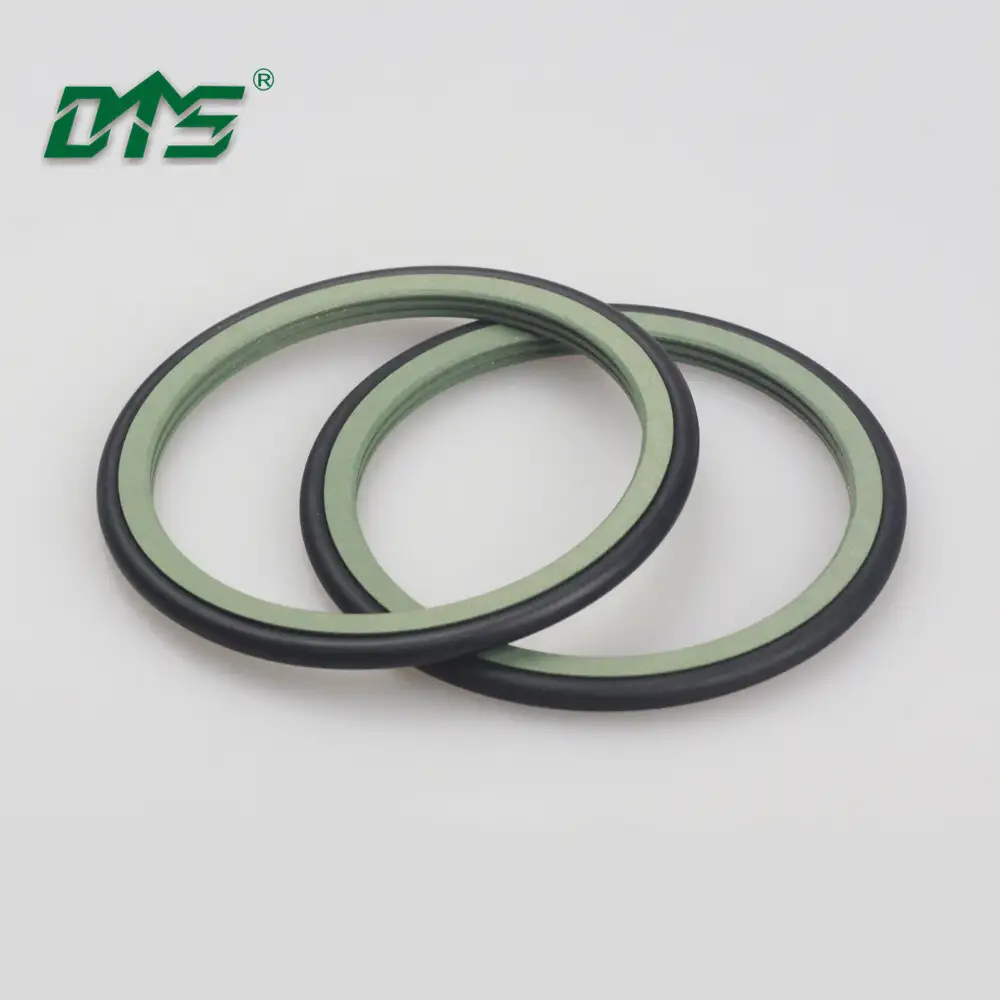

The GRS consists of a wear-resistant, low-friction filled PTFE slip ring and an O-ring rubber seal. O-rings provide preload to compensate for wear on the sliding ring. It has a bidirectional sealing effect and is suitable for high-pressure, low-speed rotary shaft sealing in hydraulic equipment.
| Item | Specifications |
| Product Name | Valave Application Carbon PTFE Rotary Seals GRS |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
Product Parameters
bg
| NO. | SIZE | NO. | SIZE |
| 1 | GRS20*27.5*3.2 | 32 | GRS120*131*4.2 |
| 2 | GRS22*29.5*3.2 | 33 | GRS125*136*4.2 |
| 3 | GRS25*32.5*3.2 | 34 | GRS130*141*4.2 |
| 4 | GRS26*33.5*3.2 | 35 | GRS135*146*4.2 |
| 5 | GRS28*35.5*3.2 | 36 | GRS140*151*4.2 |
| 6 | GRS30*37.5*3.2 | 37 | GRS145*156*4.2 |
| 7 | GRS32*39.5*3.2 | 38 | GRS150*161*4.2 |
| 8 | GRS35*42.5*3.2 | 39 | GRS155*166*4.2 |
| 9 | GRS36*43.5*3.2 | 40 | GRS160*171*4.2 |
| 10 | GRS40*51*4.2 | 41 | GRS170*181*4.2 |
| 11 | GRS42*53*4.2 | 42 | GRS180*191*4.2 |
| 12 | GRS44*55*4.2 | 43 | GRS190*201*4.2 |
| 13 | GRS45*56*4.2 | 44 | GRS200*215.5*6.3 |
| 14 | GRS48*59*4.2 | 45 | GRS210*225.5*6.3 |
| 15 | GRS50*61*4.2 | 46 | GRS220*235.5*6.3 |
| 16 | GRS52*63*4.2 | 47 | GRS240*255.5*6.3 |
| 17 | GRS55*66*4.2 | 48 | GRS250*265.5*6.3 |
| 18 | GRS56*67*4.2 | 49 | GRS280*301*8.1 |
| 19 | GRS60*71*4.2 | 50 | GRS300*321*8.1 |
| 20 | GRS63*74*4.2 | 51 | GRS320*341*8.1 |
| 21 | GRS65*76*4.2 | 52 | GRS350*371*8.1 |
| 22 | GRS70*81*4.2 | 53 | GRS360*381*8.1 |
| 23 | GRS75*86*4.2 | 54 | GRS400*421*8.1 |
| 24 | GRS80*91*4.2 | 55 | GRS420*441*8.1 |
| 25 | GRS85*96*4.2 | 56 | GRS450*471*8.1 |
| 26 | GRS90*101*4.2 | 57 | GRS480*501*8.1 |
| 27 | GRS95*106*4.2 | 58 | GRS500*521*8.1 |
| 28 | GRS100*111*4.2 | 59 | GRS520*541*8.1 |
| 29 | GRS105*116*4.2 | 60 | GRS530*551*8.1 |
| 30 | GRS110*121*4.2 | 61 | GRS550*571*8.1 |
| 31 | GRS115*126*4.2 | 62 | GRS600*621*8.1 |
