Wholesale seal ptfe piston seals DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. We are specialized in offering our clients an excellent array of piston seals.
2. Dms Seals Technology Co.,limited is familiar with the sales network in hydraulic piston seals area. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. pneumatic piston seals optimizes the functions of o-ring seal which also improves the efficiency. We have developed solutions of the sealing of special working condition
4. The attractive patterns and inexplicable designs of the piston seals has attracted various national as well as international clients to place bulk orders. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
5. hydraulic piston seals sizes is the mainly trendy characteristics in hydraulic piston seals industry. DMS Seals takes the lead in grasping the development trend of the industry

Installation Recommendation

undefined

Installation Sizes

D H8	d h9	L+0.2	H
˂96	D-16.3	8	7.5
96-190	D-20	10	9.5
191-380	D-28	13	12.5
381-1000	D-36	20	19.5

Application and properties

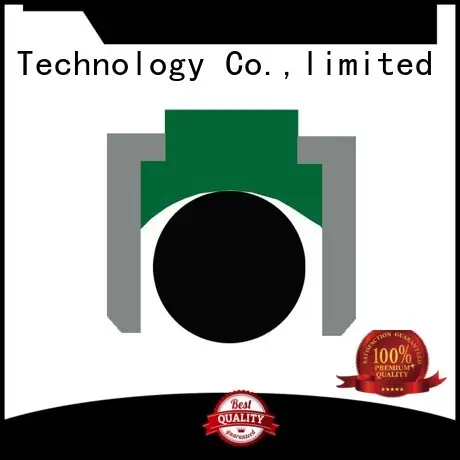

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L	e	Order No.
40 45 50	23.2 28.2 33.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA4023.27.5 DGDA4528.27.5 DGDA5033.27.5
56 63 65	39.2 46.2 48.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA5639.27.5 DGDA6346.27.5 DGDA6548.27.5
70 75 80	53.2 58.2 63.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA7053.27.5 DGDA7558.27.5 DGDA8063.27.5
85 90 95	68.2 73.2 78.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA8568.27.5 DGDA9073.27.5 DGDA9578.27.5
100 105 110	80 85 90	9.5 9.5 9.5	10 10 10	10 10 10	DGDA100809.5 DGDA105859.5 DGDA110909.5
115 120 125	95 100 105	9.5 9.5 9.5	10 10 10	10 10 10	DGDA115959.5 DGDA1201009.5 DGDA1251059.5
130 135 140	110 115 120	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1301109.5 DGDA1351159.5 DGDA1401209.5
145 150 155	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1451259.5 DGDA1501309.5 DGDA1551359.5
160 170 180	140 150 160	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1601409.5 DGDA1701509.5 DGDA1801609.5
190 200 210	170 172 182	9.5 12.5 12.5	10 13 13	10 12 12	DGDA1901709.5 DGDA20017212.5 DGDA21018212.5
220 225 235	192 197 207	12.5 12.5 12.5	13 13 13	12 12 12	DGDA22019212.5 DGDA22519712.5 DGDA23520712.5

Installation Dimensions

Company Features
1. DMS Seal Manufacturer has gained its popularity all over the world.
2. Dms Seals Technology Co.,limited's forward-looking technology helps its customers stay ahead of the industry.
3. DMS Seal Manufacturer offers quality piston seals at the economical price. Get more info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
